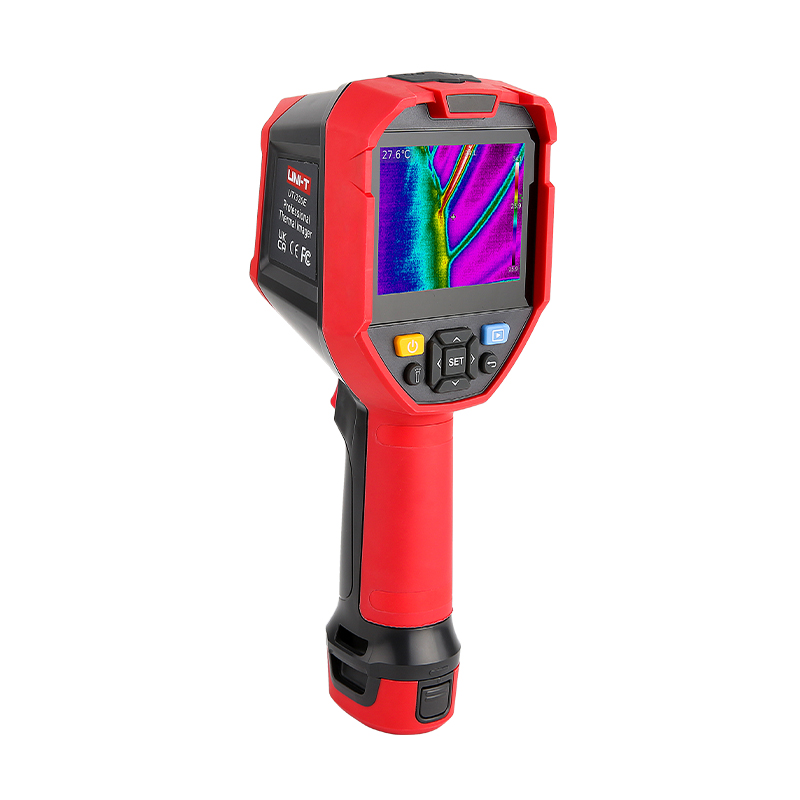

UNI-T UTi320E Thermal Imager (-40~400℃, 320x240 pixel, 3mrad)

General Characteristics:

IR resolution: 320x240 pixel

Screen Display: 3.5”IPS

Field of view (FOV): 56°x 42°

Thermal sensitivity (NETD): 65mK

Spatial resolution (IFOV): 3mrad

Focus: Focus free

Frame rate: 9Hz

Object Temperature range: -40~400℃

Measurement accuracy: ±2℃ or ±2% whichever is greater

Battery: Li-ion battery pack(5200mAh)

Battery Type: Replaceable

Battery operating time: ≧ 4 hours

Palettes: 7

Emissivity: Adjustable (0.01-0.99)

Measurement presets: Point x5, Line x1, Area x6

Digital camera: 2MP

Digital zoom: 2x, 4x

Image Model: Thermal, visible, blending, PiP

LED: √

WiFi download photo: √

ROI (eliminates interference): √

Isotherm: √

Atuo tracking for Lo/Hi temperature: √

Alarm: √

Storage: 16G Mcro SD Card

PC software: Analysis, Real-time display

Protection: IP54/2m

Communication interface: Type-C

Product net size: 260mmx97mmx99mm

Product net weight: 630g

Standard accessories: Micro SD card, Type-C USB cable, manual, Li-ion battery pack
