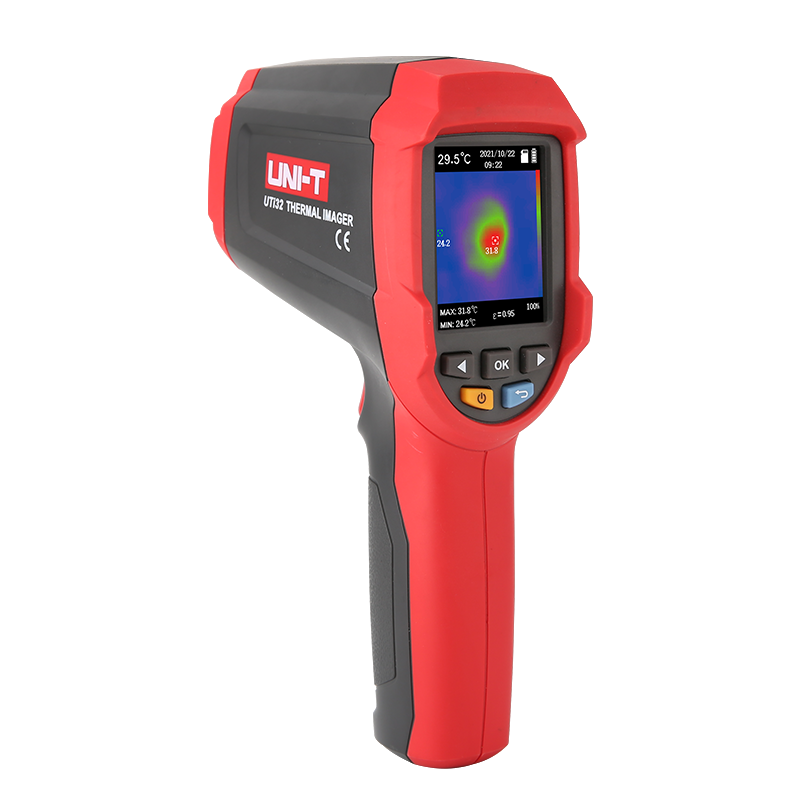

UNI-T UTi32 High Temperature Thermal Camera (32×32; -20℃ ~ 1000℃; 0.15 ℃)

Technical Data

IR resolution (Pixels): 32×32

Display: 2.4″ LCD (480×320)

Field of view(FOV): 30°×30°

Thermal sensitivity(NETD): 0.15℃

Frame rate: ≤9Hz

Focus: Focus free

Temperature measurement range: -20℃ ~ 1000℃

Accuracy:±2℃ or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions

Color palettes: 3(Ironbow, Rainbow, Black hot)

Image modes: Thermal,Visual image,Fusion

Digital camera resolution: 640×480

Hi/Lo temperature alarm: Icon

Software analysis: PC

General Characteristics

Battery: Fixed Li-ion battery (3.7V 2600mAh)

Battery operation time: ≥7 hours

USB: Type-C

Storage: 16G Mirco SD card

Image/Video storage format: BMP

Certificates: CE,UKCA,FCC,RoHS

Product net weight: 301g

Product size: 205mmx124mmx65mm

Packing Details

Standard accessories: Micro SD card, Type-C USB cable, English manual, Documents Download Operation Guide
