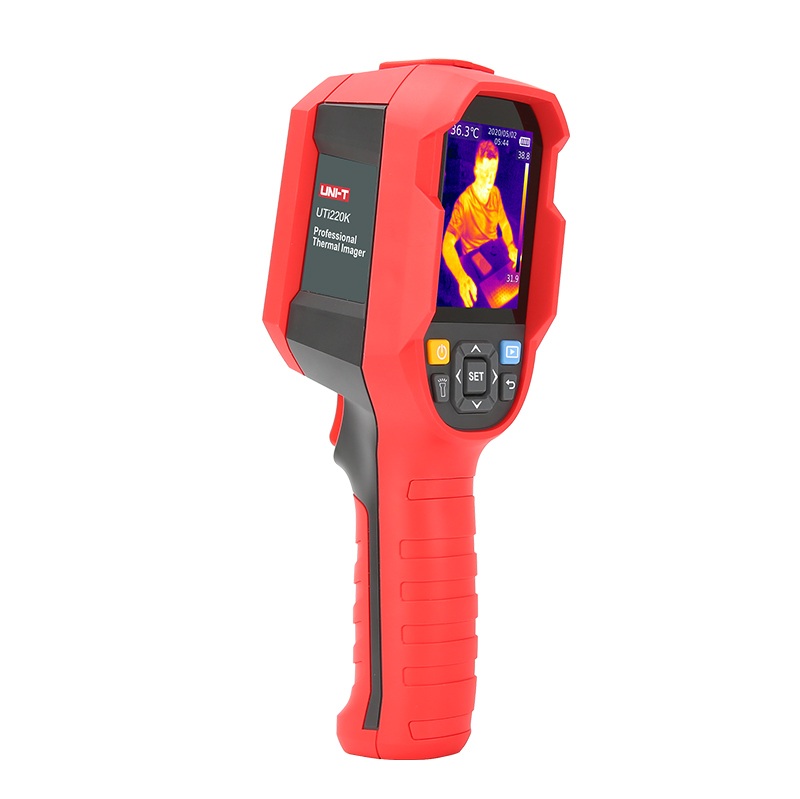

UNI-T UTi220K Thermal Imager (30˚C~45˚C, 200×150)

Sensor: Uncooled focal plane

Temperature range: 30˚C~45˚C

Resolution: 0.1˚C

Accuracy: ±0.5˚C (at 25˚C ambient temperature)

Optimal measuring distance: 1m

Temperature measurement response time: ≤500ms (95% of reading)

Thermal resolution: 30000 (200×150)

Pixel dimemsions: 12μm

Palettes: Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow

Bandwidth of infraed spectroscopy: 8~14μm

Field of view (FOV): 35°(H) × 26°(V)

Instantaneous field of view (IFOV): 3.1mrad

Thermal imaging sensitivity: ＜100mk

Frame rate: ＜9Hz

Temperature display: Center temperature measurement and high temperature tracking (default)

Image format: BMP

Image modes: Thermal camera, visible camera, ROI

Temperature measuring point: Besides central point, 3 temperature measuring points can be added

Visual camera: Yes

Resolution of visible light: 640×480

Display resolution: 320×240

Image blending: 0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)

PC analysis software (PC): Yes

Real-time image transmission: Through PC software

Data communication: Type-C USB

Auto power off: Selectable (5min, 10min, 30min), 30min auto power off (default)

Battery life: ≥6 hours

Charging time: ≤5 hours

Charging voltage/current: 5V/2A

Image storage: Micro SD card

Power: A single Li-ion 3.7V/5000mAh 26650 battery

Display: 2.8" TFT LCD

Product color: Red & grey

Product size: 236mm x 75.5mm x 86mm

Standard accessories: Manual, Type-C USB cable, 16GB TF card
