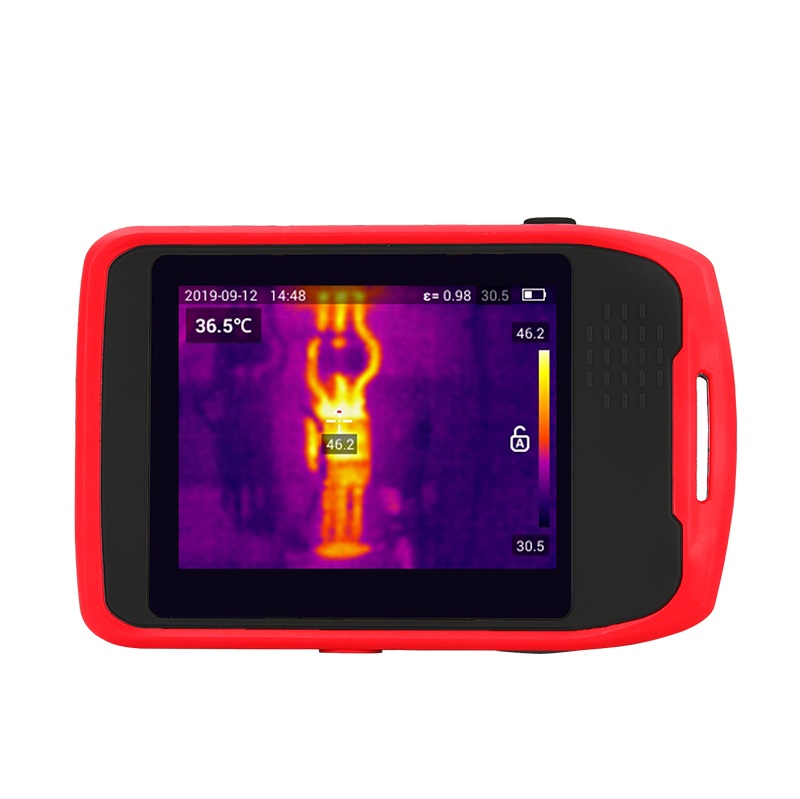

UNI-T UTi120T Thermal Imager (120×90pixels,-20~400°C)

IR resolution: 120 × 90 pixels

Field of view (FOV): 50°×38°

Thermal sensitivity (NETD): ＜60mk

Temperature range: -20~400°C

Spatial resolution (IFOV): 7.6mrad

Frame rate: 25Hz/9Hz

Measurement accuracy: ±2°C or ±2%

Focus: Focus free

Digital zoom: 2×, 4×, 8×

Display modes: Thermal, image blending, visible light, PIP

Display screen size: 3.5" LCD

Auto capture of Hi/Lo temperature: Yes

Isotherm: No

Measurement modes: Point, area

Wifi: Yes

PC analysis software: Yes

Drop proof: 1m

IP rating: IP54

General Characteristics

Power: Li-ion battery: 3.7V/5000mAh

Product color: Red and grey

Product net weight: 212g

Product size: 205mm x 124 mm x 65mm

Standard accessories: Micro SD card, micro USB cable, carrying bag
