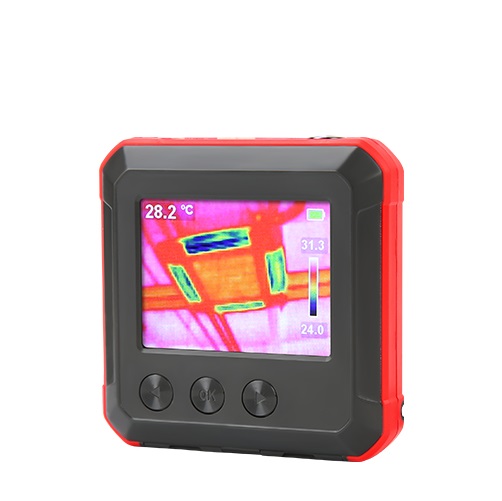

UNI-T UTi120P Thermal Imager (120x90 pixels, -20~400°C)

IR resolution: 120 x 90 pixels

Field of view (FOV): 51° x 38°

Thermal sensitivity (NETD): ＜60mk

Temperature range: -20~400°C

Spatial resolution (IFOV): 7.3mrad

Frame rate: 25Hz

Measurement accuracy: ±2°C or ±2% whichever is greater

Palettes: 3

Emissivity: Adjustable (0.01-1.00)

Focus: Focus free

Display modes: Thermal

Display: 2.4”TFT LCD

Auto capture of Hi/Lo temperature: Yes

Measurement modes: Point, area

PC analysis software: Yes

Drop proof: 1m

Power: Li-ion battery (3.7V 1300mAh)

Product net weight: 125g

Product size: 76mm x 76 mm x 22mm

Standard accessories: Carrying bag, micro USB cable, micro SD card, English manual
