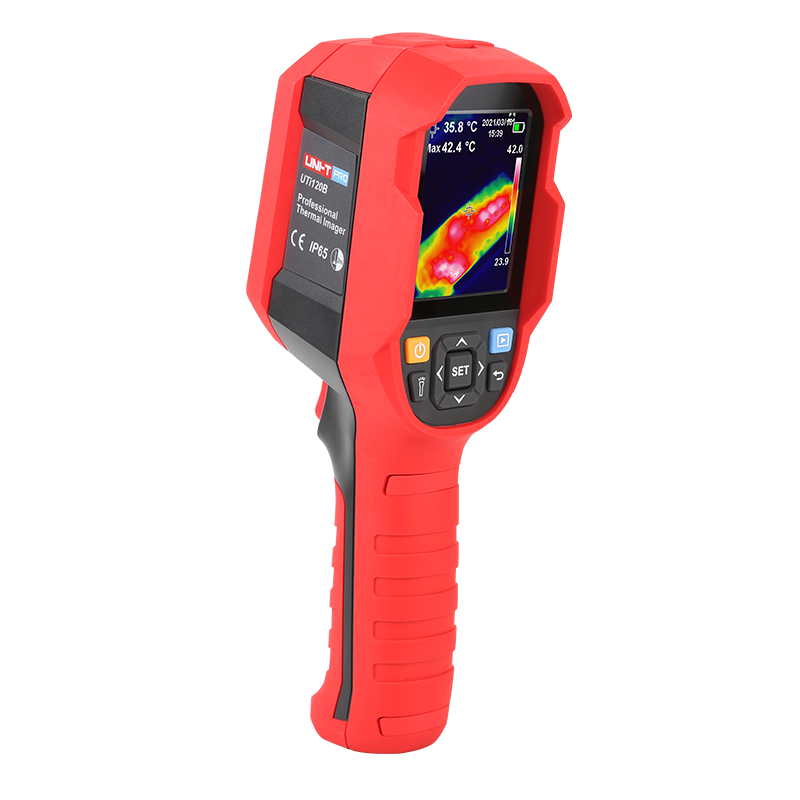

UNI-T UTi120B Thermal Imager (-20~400℃, 120x90 pixels, 7.3mrad)

General Characteristics:

IR resolution: 120x90 pixels

Screen Display: 2.8”LCD

Field of view (FOV): 50°x38°

Thermal sensitivity (NETD): 60mk

Spatial resolution (IFOV): 7.3mrad

Focus: Focus free

Frame rate: 25Hz

Object Temperature range: -20~400℃

Measurement accuracy: ±2℃ or ±2% whichever is greater

Battery operating time: 6hours

Founctions:

Palettes: 5

EmissivityAdjustable: (0.01-0.99)

Digital camera: 648 x 488 pixels

Image Model: Thermal,visible,blending

LED: √

ROI (eliminates interference): √

Auto tracking for Lo/Hi temperature: √

Alarm: √

Storage: 16G Micro SD Card

PC software: Analysis, Real-time display

Protection: IP65/2m

Communication interface: Type-C

Package:

Product net size: 236mm x 75.5 mm x 86mm

Product net weight: 910g

Standard accessories: Micro SD card, Type-C USB cable, Manual
