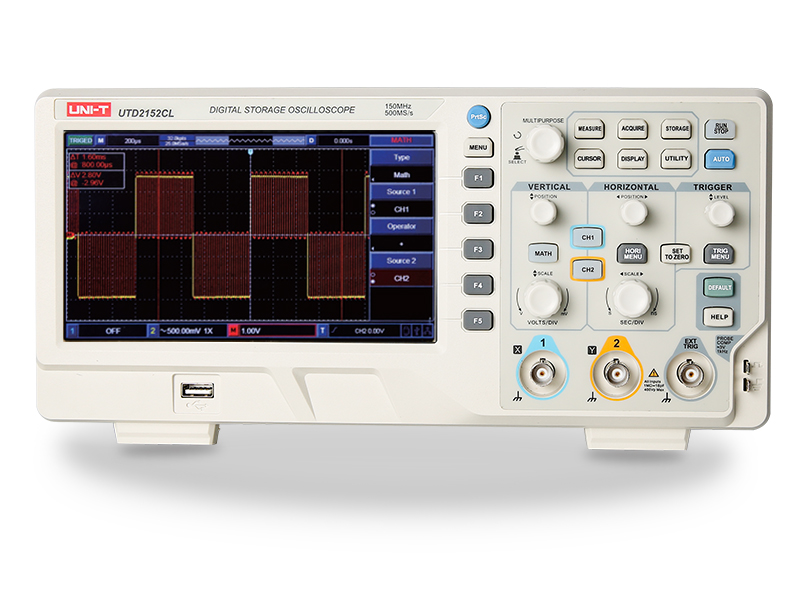

UNI-T UTD2152CL Digital Storage Oscilloscope (150MHz, 2CH, 500MS/s)

Channels: 2

Bandwidth: 150MHz

Sampling rate: 500MS/s

Rise time: <2.4ns

Memory depth: 64kpts

Waveform capture rate: >5,000wfms/s

Vertical scale (V/div): 1mV/div~20V/div

Time base scale (s/div): 2ns/div~50s/div

Timing accuracy: ≤± （50+2 × service life ）ppm

Timebase mode: Y-T、X-Y、Roll

Storage methods: Setup, wave, bitmap

Trigger types: Edge, pulse width, Slope ,video ,alternate

Mathematical operations: ＋, －, ×, ÷, FFT

Auto measurements: Max, Min, High, Low, Ampl, Pk-Pk, Middle, Mean, CycMean, RMS, C ycRMS, Period, Freq, Rise, Fall, RiseDelay, FallDelay, +Width, -Width, +Duty, -Duty,(UTD2052/25CL)FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total

Displayed measurements: Display 5 measurements at the same time

Frequency counter: 6 bits

Interface: USB OTG,Pass/Fail

Power: 100-240VAC, 45-440Hz

Display: 7 inches TFT LCD, 800×480

Product color: White and grey

Product net weight: 2.5kg

Product size: 306mm×138mm×124mm
