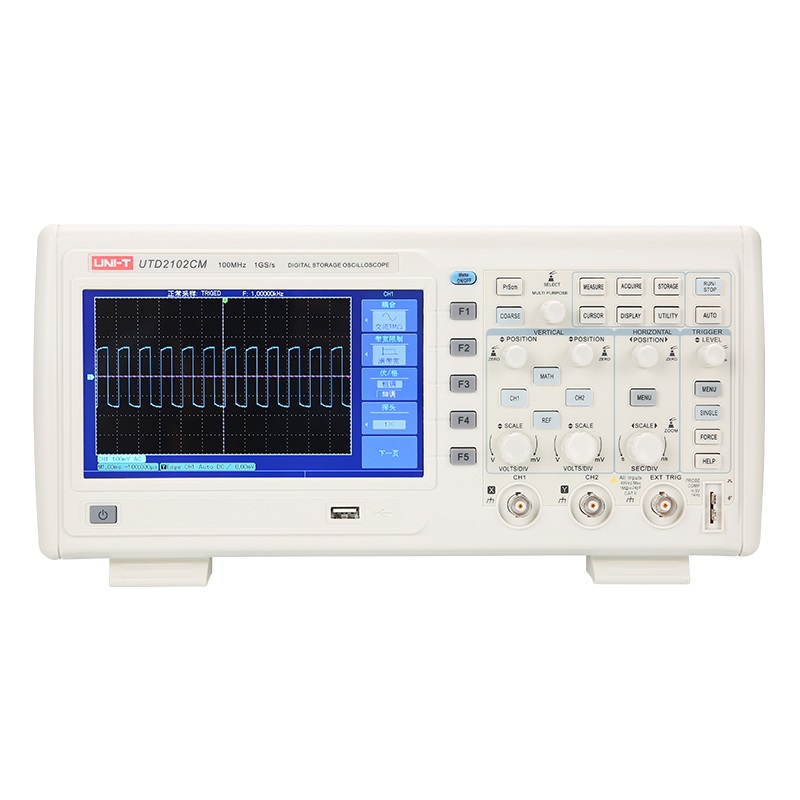

UNI-T UTD2102CM Digital Storage Oscilloscope (100MHz, 1GS/s, 2CH)

Channels: 2

Bandwidth: 100MHz

Sample Rate: 1GS/s

Rise Time: ≤3.5ns

Memory Depth: 32Mpts

Waveform Acquisition Rate: ≥150,000wfms/s

Vertical Sensitivity: 2mV/div~10V/div

Timebase Range: 2ns/div~50s/div

Storage: Setup, Wave, Bitmap, CSV

Trigger Modes: Edge, Pulse, Runt, Video, Slope, Alternate

Interface: USB Device, USB Host, Pass/Fail

Power: 100~240VAC, 50/60Hz

Display: 7 inches TFT LCD, WVGA (800×480)

Product Color: White and grey

Product Net Weight: 2.9kg

Product Size (W×H×D): 332mm × 147mm × 170mm

Standard Accessories: Probe×2 (1×,10× switchable), Power Cord, USB Cable
