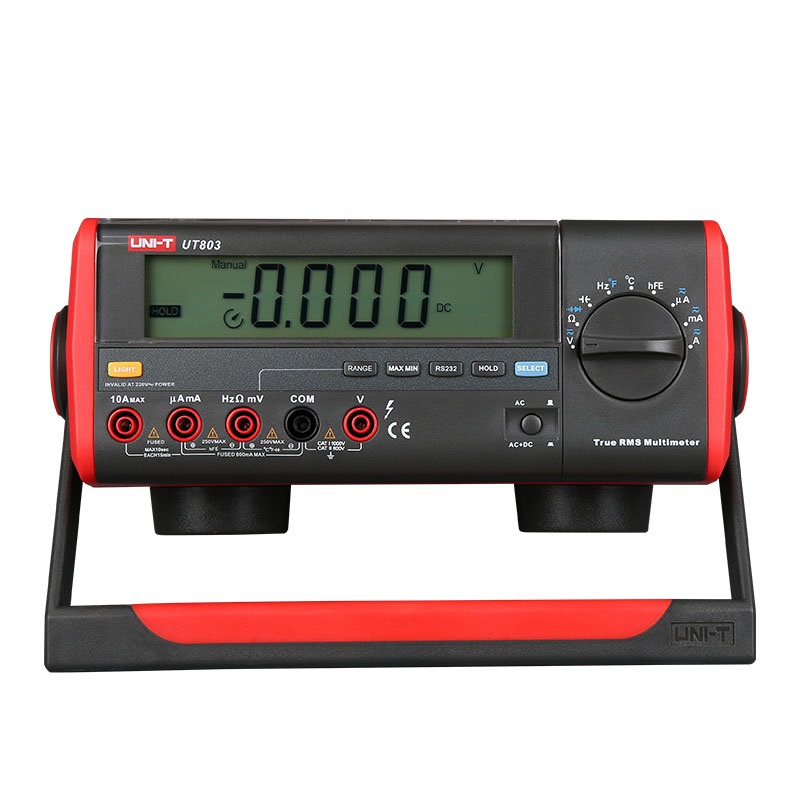

UNI-T UT803 Bechtop Digital Multimeter (1000V DC/AC, 10A DC/AC)

DC voltage (V): 1000V ±(0.3%+2)

AC voltage (V): 1000V ±(0.6%+5)

DC current (A): 10A ±(0.5%+3)

AC current (A): 10A ±(1%+5)

Resistance (Ω): 60MΩ ±(0.5%+2)

Capacitance (F): 6mF ±(2%+5)

Frequency (Hz): 60MHz ±(0.1%+3)

Temperature (°C): -40°C~1000°C ±(1%+3)

Temperature (°F): -40°F~1832°F ±(1.5%+5)

Display count: 6000

Auto/Manual range: Auto

Bandwidth (Hz): 100kHz

Diode/Transistor: Yes

Auto power off: Yes

Input protection: Yes

Continuity buzzer: Yes

Low battery indication: Yes

Data hold/LCD backlight: Yes

MAX/MIN/RS-232: Yes

USB interface: Yes

Voltage & current: AC+DC measurement

Power: AC 220V/50Hz or 1.5V batteries (R14) x 6

Display: 128mm x 28mm

Product color: Red and grey

Product net weight: 2.4kg

Product size: 310mm x 240mm x 105mm

Standard accessories: Test lead, alligator clip, point contact temperature probe, multi-purpose socket; AC 220V power cord, RS-232 interface cable, USB interface cable
