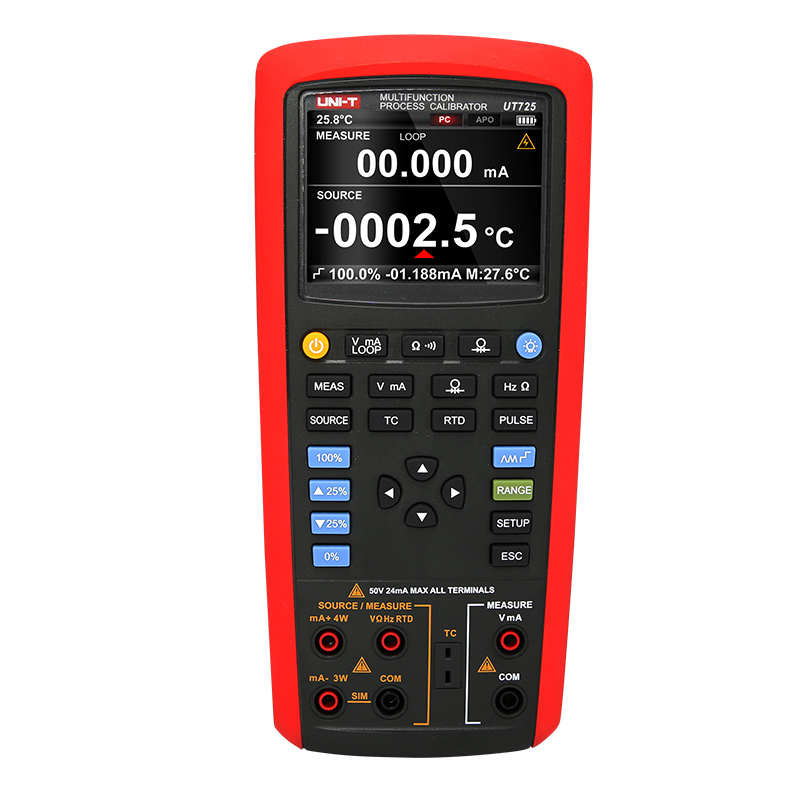

UNI-T UT725 Multifunction Process Calibrator (R,S,K,E,J,T,N,B,L,U,XK,BP)

Certificates: CE, RoHS

DC voltage (V): 50mV/500mV/50V ±(0.02%+2)

DC current (mA): 20mA ±(0.02%+2)

Loop current (mA): 20mA ±(0.02%+2)

Resistance (Ω): 500Ω/5000Ω ±(0.05%+10)

Frequency (Hz): 100Hz/1kHz/10kHz/100kHz±(0.01%+1)

Thermocouples: R,S,K,E,J,T,N,B,L,U,XK,BP

RTDs: Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120

Continuity test: Yes

Pulses (Hz): 1~15kHz (1~100000 periods)

Source accuracy:

DC voltage (V): 100mV/1000mV/10V ±(0.02%+10)

DC current (A): 20mA/20mA(SIM) ±(0.02%+2)

Resistance (Ω): 400Ω/4000Ω/40kΩ ±(0.05%+10)

Frequency (Hz): 200Hz/2000Hz/20kHz/100kHz ±(0.01%+1)

Pulses (Hz): 100Hz/1kHz/10kHz ±1

Thermocouples: R,S,K,E,J,T,N,B,L,U,XK,BP

RTDs: Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120

Display count: 20000

Operation temperature: -10°C~55°C

Power: 1.2V x 6 AA rechargeable battery

Product net weight: 650g

Product size: 195mm x 95mm x 58mm

Standard accessory: Test lead, USB cable, power adapter, temperature probe, English manual
