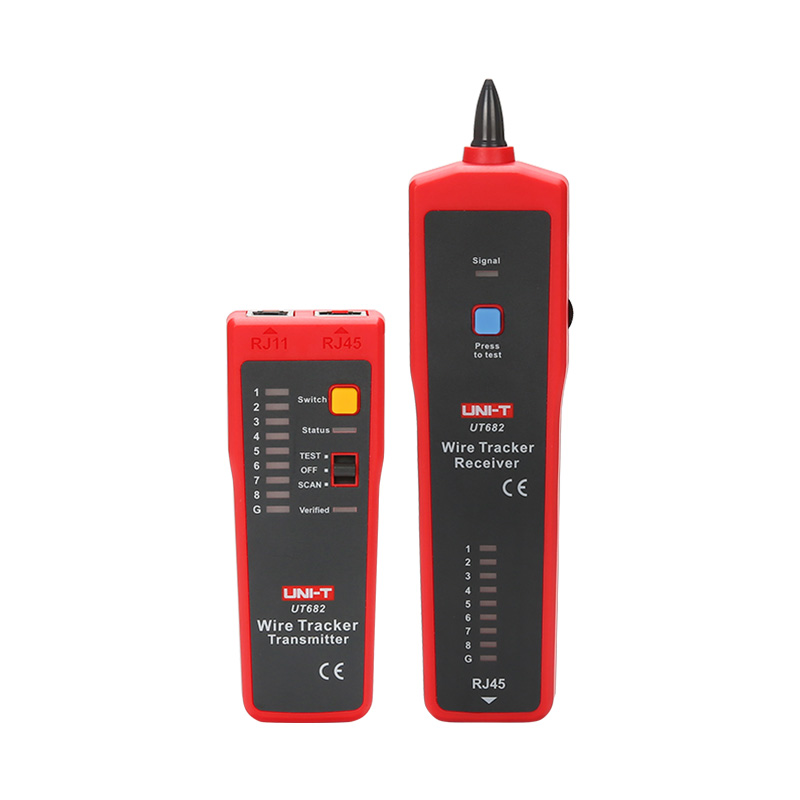

UNI-T UT682 Cable Tester (LAN cable/telephone line/coaxial cable/electric wire)

LAN cable/telephone line/coaxial cable/electric wire: Yes

Telephone line/twisted-pair/electric wire: No

Indication light for signal strength: Yes

Live switchboard wire tracing: Yes

Switchboard wire tracing distance: ≥100m

Telephone lines tracking distance: ≥3000m

Cables tracking distance: ≥320m

Open and short circuit test: Yes

Polarity indication for telelphone lines: Yes

Broken wire tracking: Yes

Transmitter low battery indication: Yes

Headphone jack for receiver: Yes

Line sequence measurement:9 LEDs

Line sequence measuring speed: Fast and slow selectable

LAN cable: shielded/unshielded indication: : Yes

Standard accessories:9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682), English manual

Product size:Transmitter-125 x 48 x 28mm, receiver-195 x 48 x 30mm

Product net weight: Transmitter-125g, receiver-153g;

Standard individual packing:Gift box, carrying bag (UT682)

Standard quantity per carton:20pcs

Standard carton measurement: 425mm x 335mm x 290mm

Standard carton gross weight: 8.4kg
