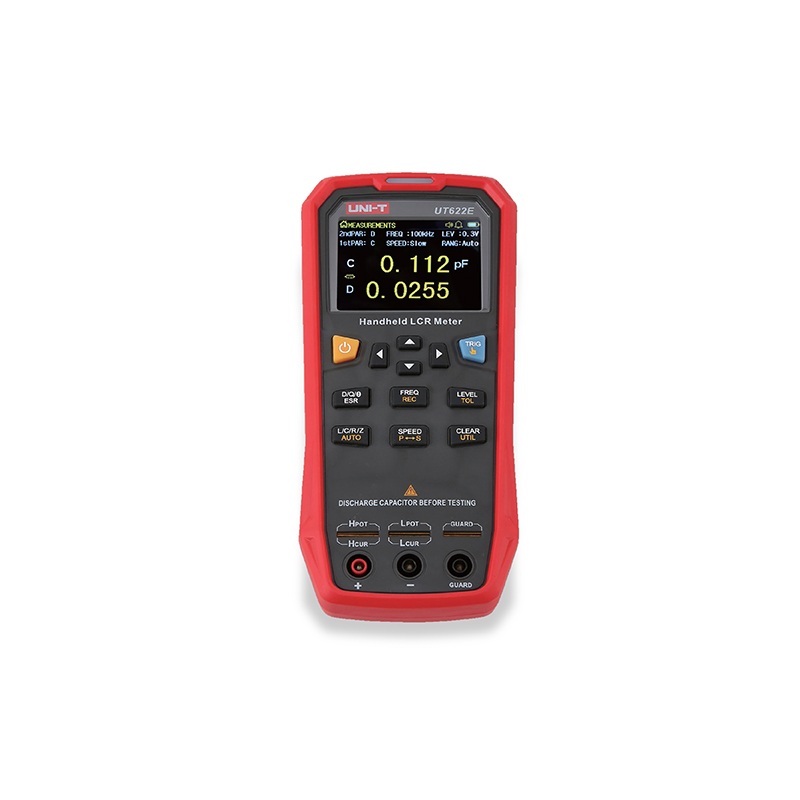

UNI-T UT622E Handheld LCR Meter (99.999H, 99.999mF, 9.9999MΩ)

Certificates: CE, RoHS

Test frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Test signal level: 0.1Vrms, 0.3Vrms, 1Vrms

Output impedance: 100Ω

Measurement parameters: Primary: L/C/R/Z/DCR , Secondary: D/Q/θ/ESR

Auto LCR: √

Test terminals: Three-terminal test jacks, five-terminal test sockets

Test rate: Fast (20 times/s), medium (5 times/s), or slow (2 times/s)

DCR test speed: Fast (20 times/s), medium (5 times/s), or slow (2 times/s)

Ranging mode: Auto/hold

Tolerance range: 1%~20%

Testing circuit mode: Series/parallel mode

Clearing correction: Open/short circuit

Fuse of test ports: 0.1A/250V

Communication interface: Mini-USB

LED alarm for tolerance

(pass: green; fail: red): √

Display range

Maximum reading: 99999

Minimum resolution: 0.0001

Maximum accuracy: 0.001

L: 0.00μH~99.999H

C: 0.00pF~99.999mF

Z/R: 0.0000Ω~9.9999MΩ

ESR: 0.0000Ω~999.99Ω

D: 0.0000~9.9999

Q: 0.0000~99999

θ: -179.9°~179.9°

DCR: 0.01mΩ--20.000MΩ

Temperature coefficient: 0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C)

General Characteristics

Power: 3.7V 1800mAh lithium polymer battery; Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A

Display: 2.8' TFT LCD 320X240

Product net weight: 420g

Product size: 93mm x 192mm x 44mm

Standard accessories: Short circuit board (UTR-001), USB cable, 5V 1A power adapter, Alligator clip test leads with rubber plugs (UTR-002)(UT622A), English manual

Standard individual packing: Gift box

Standard quantity per carton: 10pcs

Standard carton measurement: 370mm × 305mm × 475mm

Standard carton gross weight: 13.2kg
