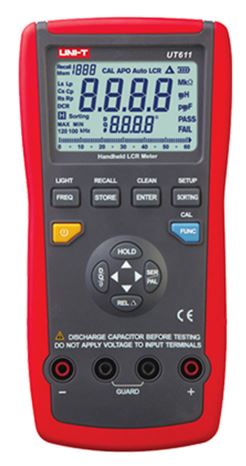

UNI-T UT611 LCR Meter

Specification

Inductance (H): 600uH~200H ±(0.4%+2)

Capacitance (F): 600pF~10mF ±(0.4%+2)

Resistance (Ω): 60Ω~20MΩ ±(0.4%+2)

Test frequency (Hz): 100Hz/120Hz/1kHz/10kHz √

Operating voltage: 0.5Vrms √

Test parameters: L/C/R/DCR/Q/D/θ/ESR √

Features

Display count : 6000

D/Q display count : 1000

D/Q resolution: 0.001 √

Auto range: √

Test frequency real-time display: √

Measurement mode: Series/Parallel √

Auto power off : √

Low battery indication: ≤6.8V √

Data hold: √

Relative mode : √

USB interface

USB interface/PC data records

Data storage : 1000

LCD backlight : √

Analog bar graph: 30

Comparison function: √

Calibration function : √

Output impedance :120Ω √

Auto LCR check and measurement: √

General Characteristics

Power: 9V battery (6F22) or USB

Display: 40mm x 63mm

Product color Red and grey

Product net weight 374g

Product size 96mm x 193mm x 47mm

Standard accessories Battery, SMD test clamp

Standard individual packing Gift box, English manual

Standard quantity per carton 10pcs

Standard carton measurement 370mm x 305mm x 475mm (0.097 CBM per standard carton)

Standard carton gross weight 13.2kg

Optional accessory USB power adaptor
