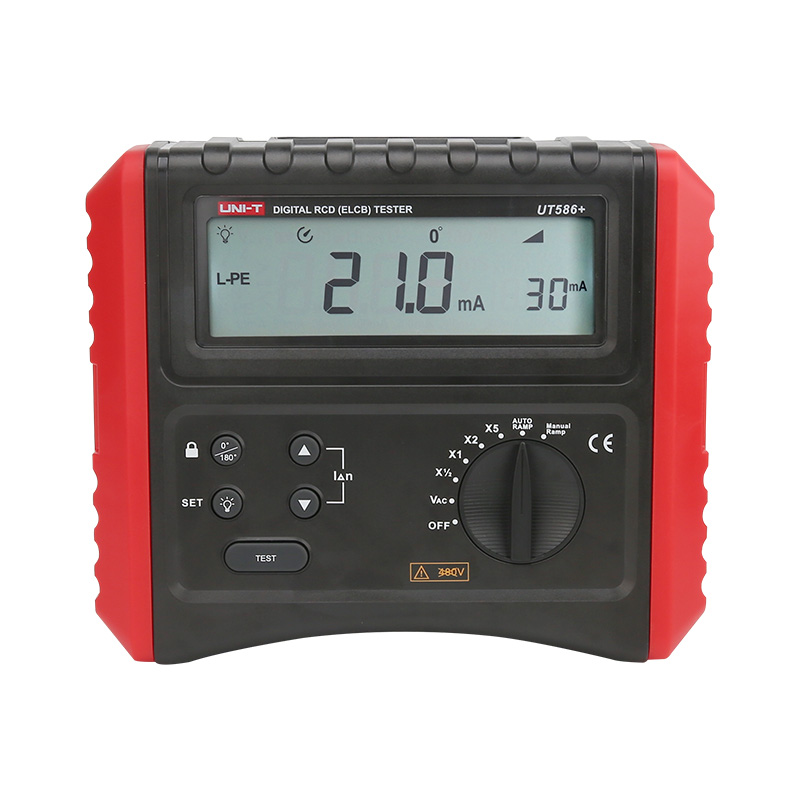

UNI-T UT586+ Digital RCD Tester (1000mA)

RCD test function

X1/2

Rate trigger current: 10/20/30/100/200/300/ 500mA/1000mA

Fault trigger time:  0~2000mS @ 0°/180°

Accuracy (time):  ±0.6%rdg±4dgt

Accuracy (current: ) -10%~0%

X1

Rate trigger current:  500mA/1000mA

Fault trigger time:  0~200mS @ 0°/180°

Accuracy (time):  ±0.6%rdg±4dgt

Accuracy (current):  0%~+10%

Rate trigger current : 10/20/30/100/200/300mA

Fault trigger time:  0~2000mS @ 0°/180°

Accuracy (time):  ±0.6%rdg±4dgt

Accuracy (current):  0%~+10%

X2

Rate trigger current:  10/20/30/100/200/300/500mA

Fault trigger time:  0~200mS @ 0°/180°

Accuracy (time: ) ±0.6%rdg±4dgt

Accuracy (current):  0%~+10%X5

Rate trigger current:  10/20/30/100/200mA

Fault trigger time:  0~200mS @ 0°/180°

Accuracy (time):  ±0.6%rdg±4dgt

Accuracy (current):  0%~+10%

AUTO

Rate trigger current:  10/20/30/100/300/ 500mA/1000mA

Fault trigger time:  0~300mS @ 0°/180°

Accuracy (time):  ±0.6%rdg±4dgt

Accuracy (current):  0%~+10%

Working voltage: 100V~440V: -15%~+10%; 50/60Hz;  If > 450V, it will issue an alarm and stop the RCD test

Voltage test : Range 30~480V (Resolution: 1V); Accuracy ±3%rdg±3dgt

Working environment: 0℃~40℃

Storage environment: -20℃~70℃
