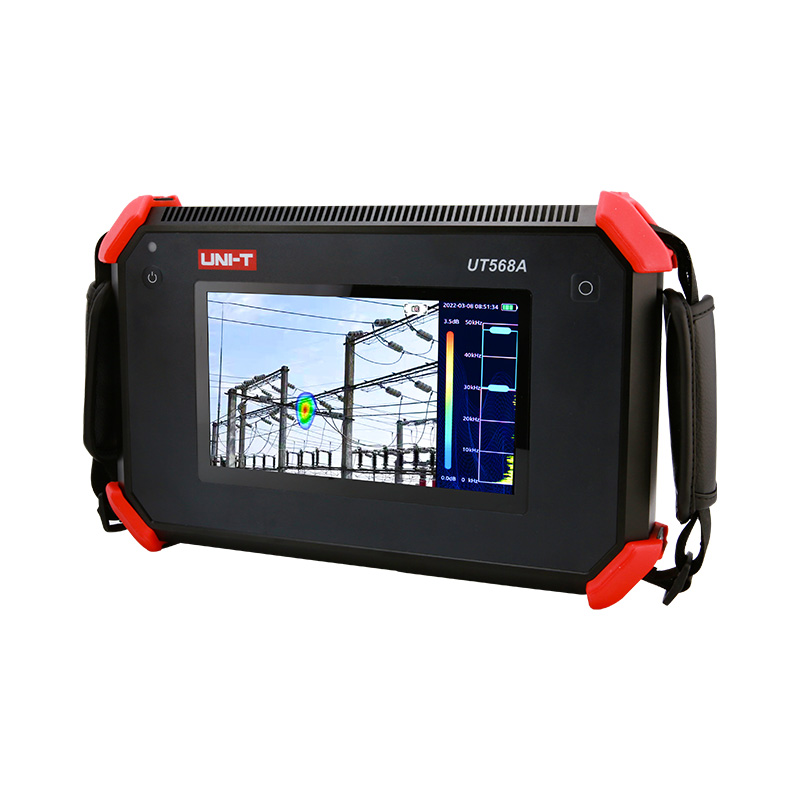

UNI-T UT568A Acoustic Imager (2kHz ~ 48kHz, 30dB-120dB)

Replaced model: UT568B

Sensors

Microphones: 128-channel MEMS digital microphone

Frequency band: 2kHz ~ 48kHz

Field of view (Acoustic): 62°

Frame rate(Acoustic): >25FPS

Sound pressure sensitivity: 30dB-120dB

Display

Resolution: 1024*600

LCD size: 7 inch

Touch screen: Capacitive touch screen

Backlight: Adjustable (under-sunlight readable)

Digital camera

Field of view (image): 62°

Focus: 3.04mm (Fixed)

Camera resolution: 8 mega pixels

Power

Battery capacity: 6600mAh@7.2V

Battery life: Around 4 hours

Charging interface: USB Type-C; USB PD protocol

Battery charging power: Charging power of protecting the battery: around 29W

The single battery charging power: around 16W

Storage

Extenal storage: TF card supported (up to 64GB)

Internal capacity: Around 8G

Image & video format: .JPG & .MP4

Working environment

Working conditions: (-10℃- +50℃),(10%-95%; No-condensing)

Storage temperature: (-20℃ ~ 40℃)

Charging temperature: 10℃ ~ 45℃

Communication interface

Digital export: Type-C(USB 3.0)

Audio interface: 3.5mm jack

Dimension and weight

Dimensionn: 272mm x 174mm x 42mm (LxWxH)

Weight: Around 1.7kg (Hand strap, shoulder strap not included)
