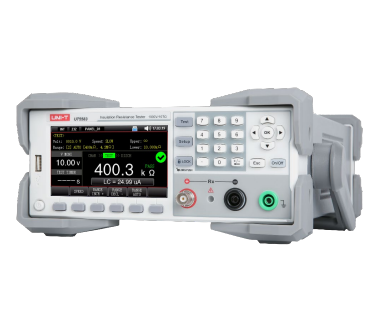

UNI-T UT5583 Insulation Resistance Tester (1V～1000V (DC), 10kΩ～10TΩ)

Measurement parameters: Insulation Resistance and Leakage Current

Output voltage: 1V～1000V (DC)

Voltage accuracy:

≥10V, ±1%+1V

＜10V, ±10%+0.1V

Measurement range: 10kΩ～10TΩ

Measurement accuracy: <1M: 5%;≥1M: 1% ; ≥1G: 3% ;≥10G: 5% ; ≥1T: 10%

Test speed: Fast: 30ms/time, medium: 100ms/time, slow: 500ms/time

Range modeL: Automatic, locking, sorting

Maximum charging current: 25mA±5mA

Show results: Voltage, current, resistance, sorting results, sound and light alarm

Trigger mode: Internal , manual , external and remote

Charging time: 0～999s, programmable

Testing time: 0～999s, programmable

Discharge time: 0～999s, programmable

File management: 100 test files

Comparator function: yes

U disk data recording: yes

Contact check: yes

Display: 4.3inch TFT-LCD

Protocol: SCPI, Modbus RTU

Interface: RS232C，USB HOST，HANDLER，FOOT， LAN，RS485(optional)
