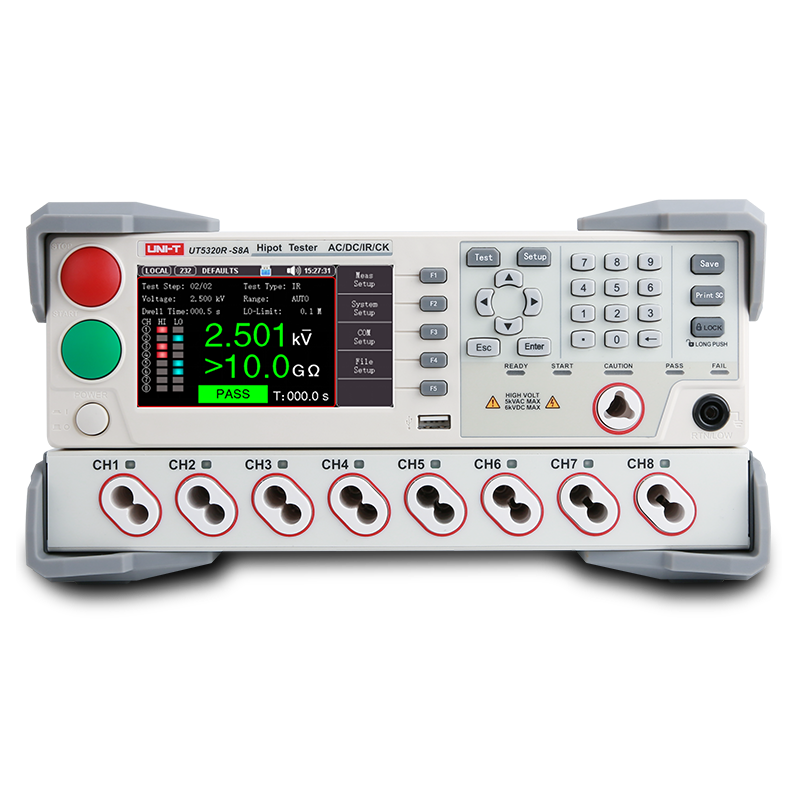

UNI-T UT5320R-S8A Hipot Tester (8CH; 0.050kV~5.000kV)

Channel : 8

Output voltage:

AC:

Voltage range : 0.050kV—5.000kV

Output power : 100VA（5.000kV 20mA）

Voltage regulation : ±(1.0%+50V)(rated power）

DC:

Voltage range : 0.050 kV—6.000kV

Voltage regulation : ±(1.0%+50V)(rated power）

Voltage output accuracy: ±(1.0%set value+5V) (no load)

Current test range:

AC:

Current range: 0.001mA – 20mA

Current accuracy: ±(2.0% reading + 5 digits)

DC:

Current range: 0.1uA – 10.00mA

Current accuracy: ±(2.0% reading + 5 digits)

Insulation resistance test:

Output voltage : 0.050kV-2.500kV(Optional 5.00kV ）

Voltage test accuracy : ±(1.0% reading +2V)

Discharge function : Discharge automatically after the test

Resistance measurement range : 0.1MΩ– 10GΩ
