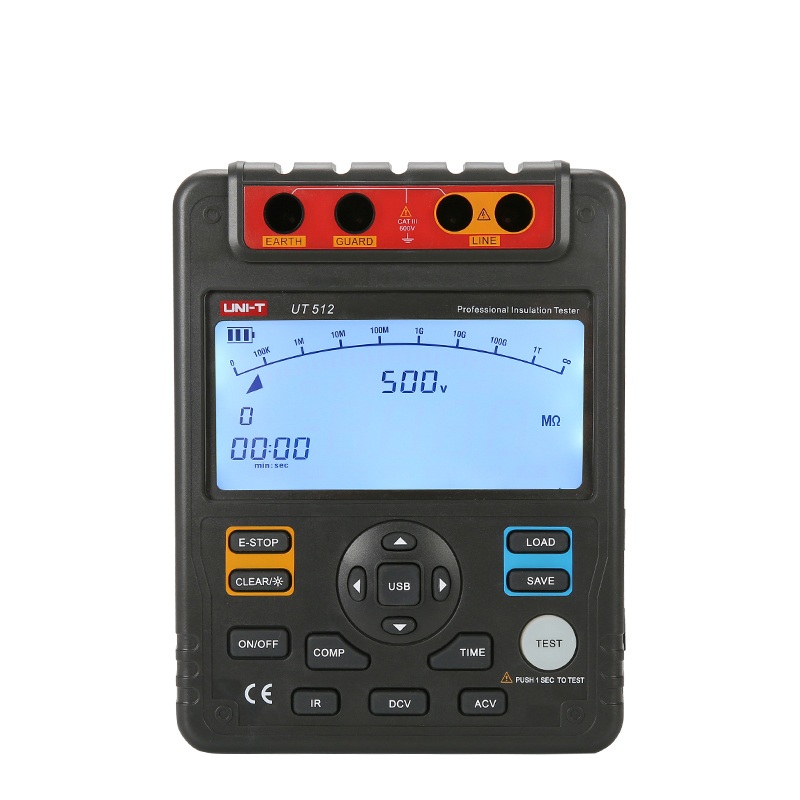

UNI-T UT512 Insulation Resistance Tester (2500V,100GΩ)

Test voltage: 2500V

Insulation resistance:

500V0.5MΩ~5GΩ±(3%+5)

1000V2MΩ~10GΩ±(3%+5)

1500V5MΩ~20GΩ±(3%+5)

2500V　10MΩ~100GΩ±(3%+5)

Short-circuit current: <1.8mA

Comparison function: Yes

Polarization index (PI): Yes

Dielectric absorption ration (DAR): Yes

Display count: 10000

Auto range: Yes

DC voltage: 600V ±(2%+5)

AC voltage: 600V ±(2%+5)

USB data transmission: Yes

Data storage: 18

High voltage prompt: Yes

LCD backlight: Yes

Analog bar: Yes

Low battery indication: Yes

Overload prompt: Yes

Light alarm: No

Buzzer alarm: Yes

Auto power off: Yes

Meets IEC 61557: 61557-1:2007, 61557-2:2007

Category ratings: CAT III 600V

Power: 1.5V battery (LR14) x 8

Display: 123mm x 58mm

Product color: Red and grey

Product net weight: 1.8kg

Product size: 202mm x 155mm x 94mm

Standard accessories: 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB cable, PC software CD, power adaptor
