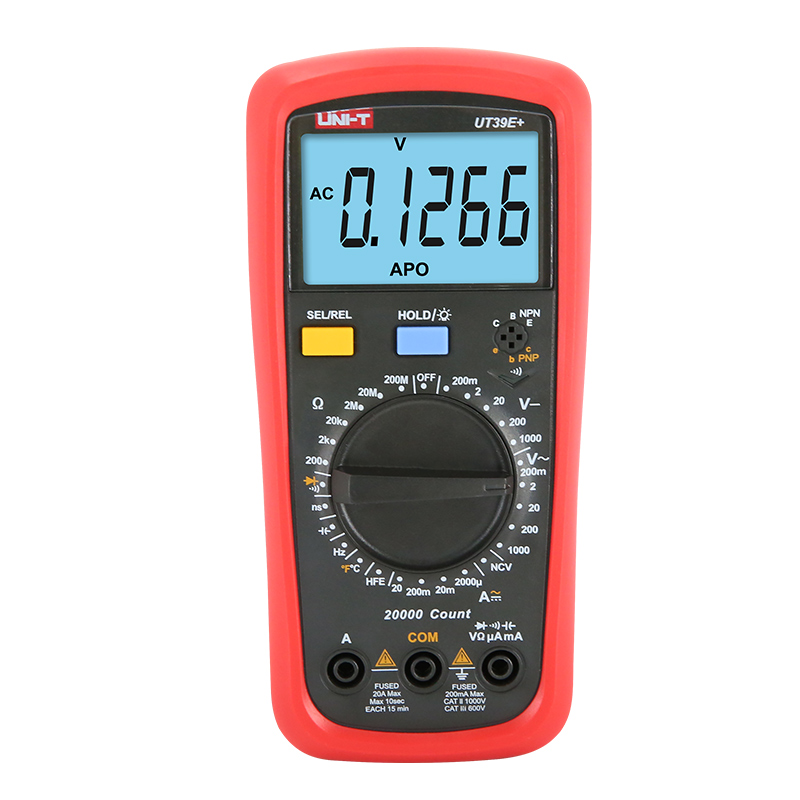

UNI-T UT39E+ Modern Digital Multimeter (DC/AC 1000V, DC/AC 20A)

Category ratings: CAT II 1000V, CAT III 600V

DC voltage (V): 200mV/2V/20V/200V/1000V ±(0.05%+3)

AC voltage (V): 200mV/2V/20V/200V/1000V ±(0.5%+10)

DC current (A): 2000uA/20mA/200mA/2A/20A ±(0.5%+5)

AC current (A): 2000uA/20mA/200mA/2A/20A ±(0.8%+10)

Resistance (Ω): 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ ±(0.3%+2)

Capacitance (F): 2000uF ±(4%+20)

Frequency (Hz): 10Hz~2MHz ±(0.1%+3)

Temperature: -40°C~1000°C ±(1%+5); -40°F~1832°F ±(1.5%+5)

Conductance (nS): 0.1~100nS ±(1%+3)

Display count: 20000

NCV: Yes

Power: 1.5V battery (R03) x 2

Display: 56.5mm x 36mm

Product net weight: 330g

Product size: 175mm x 83mm x 53mm

Standard accessories: Test leads, temperature probe, English manual
