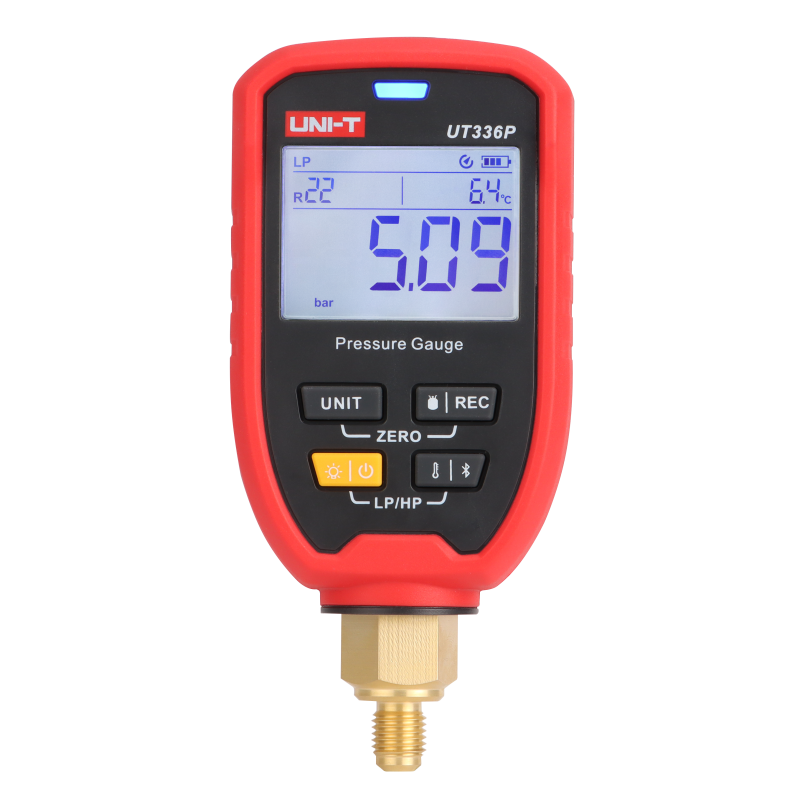

UNI-T UT336P Wireless Pressure Gauge (-1 ~ 60bar)

Range/Resolution: -1 to 60bar/0.01bar

-1.01 to 61.18kg/cm²/ 0.01kg/cm²

-75.0 to 4,500.3cmHg/ 0.1cmHg

-14.5 to 870.2psi/0.1psi

-29.52 to 1,771.8inHg/ 0.1in/Hg

-100 to 6,000kPa/ 1kPa

-0.100 to 6.000MPa/ 0.001MPa

Accuracy: ±0.5%FS

Units: Pressure: Bar; kg/cm²; cmHg; psi; inHg; kPa; MPa

Temperature: ℃; ℉

Refrigerant Types: 10 types are preset (Set via APPs, total 94)

Evaporating/Condensing Temperature: As per the refrigerant type

High/Low Pressure Switch: √

Data Record: 8000

Data Record Interval: 1s~1h （APP setting）

LED Indicators: Red (HP); Blue (LP);

Pressure Zeroing: √

Screen Backlight: √

Phone APPs: √ (iENV)

Auto Power Off: √.

Firmware Upgrade: √

Temperature Clamp Port: 3.5 mm port

Battery Life: 100h(Alkaline battery; Backlight OFF; LED ON; 1-min record interval)

IP Rating: IP54

Pressure Connector: 1/4″ SAE Connector

Over Range: OL（＞65bar）

Working Temperature & Humidity: -10~+50℃,＜90%RH

Storage Temperature & Humidity: -20~+60℃,＜80%RH

Characteristics

Power Supply: 3x Alkaline AA battery

Product Size: 145*68*39 mm

Product Net Weight: 250g (Not battery included)

Standard Accessories: Wireless Pressure Gauge, Quick Start Guide, Safety Guide, Download Guide of Common Files, AA Battery*3, Hand Strap, Cloth Bag (Hard)
