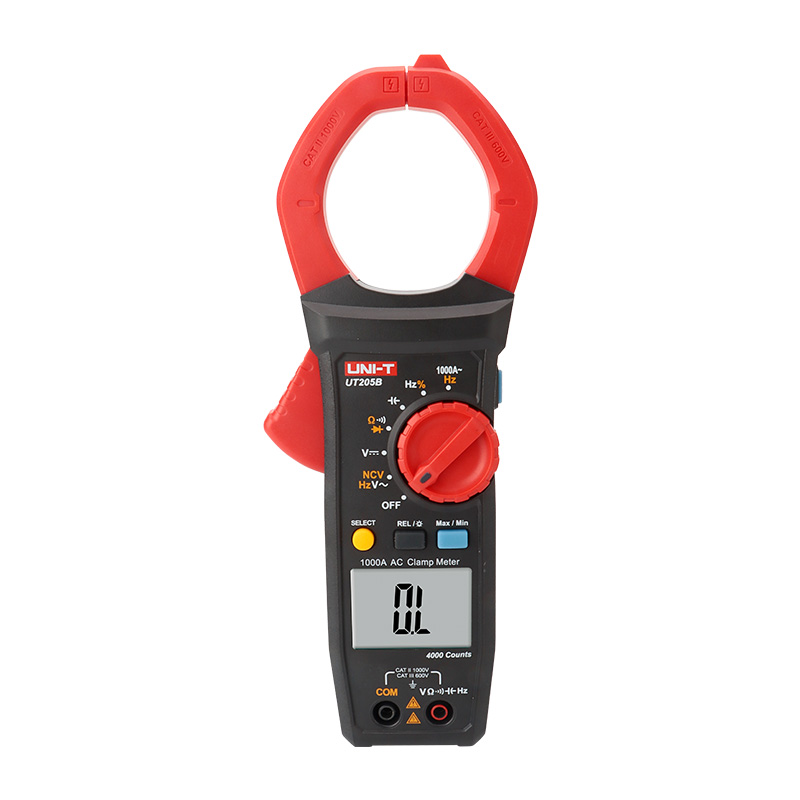

UNI-T UT205B AC clamp meter (1000A)

AC current (A): Range: 1000A; Accuracy: ±（1.5%+5)

ACA frequency (Hz): Range: 40Hz～1kHz; Accuracy: ±（1.0%＋5）

AC voltage (V): Range: 1000V; Accuracy: ±（1.0%＋2）

ACV frequency (Hz): Range: 10Hz～10kHz; Accuracy: ±（1.0%＋5）

DC voltage (V): Range: 1000V; Accuracy: ±（0.8%＋2）

Resistance (Ω): Range: 40.00MΩ; Accuracy: ±(2.5%+5)

Capacitance (F): Range: 40mF; Accuracy: ±(10%)

Frequency (Hz): Range: 10Hz ～ 10MHz; Accuracy: ±（0.1%+4)

Duty cycle: Range: 0.1%～99.9%; Accuracy: ±（3.0%+5)

- Features

Jaw opening: 60mm

Jaw size: 55mm

NCV: √

Continuity: √

Diode test: √

LCD screen: 42*30mm

Display count: 4099

Low battery indication: √

Data hold: √

Auto power off: Around 15 minutes

Max/Min: √

Flashlight: √

Backlight: √

Relative mode: √

Overvoltage category: CAT II 1000V/CAT III 600V
