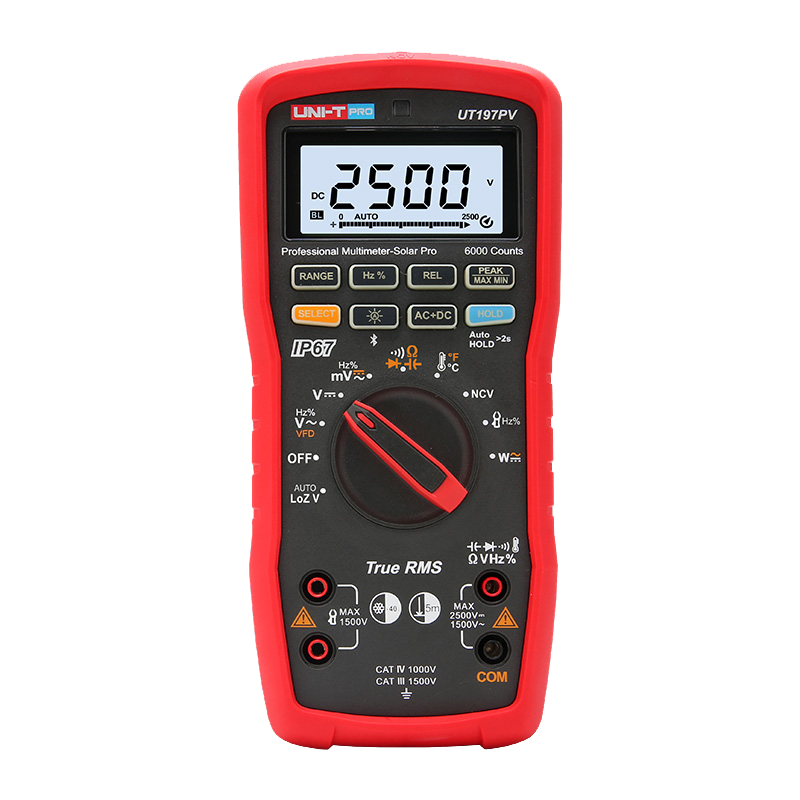

UNI-T UT197PV Professional multimeter-solar pro (True RMS, 2500VDC, 1500VAC)

Specification

Voltage(DCV):

600.0mV: ±(0.3%+5)

6.000V/60.00V/600.0V: ±(0.2%+5)

2500V: ±(1.0%+5)

Voltage(ACV) (45～1kHz): 600.00mV/6.000V/60.00V/600.0V/1500V: ≥45Hz, <500Hz: ±(0.8%+3); ≥500Hz, <1KHz: ±(1.8%+3);

VFD (ACV) ( 45～200Hz): 600.0V/1500V: ±(2.0%+5)

Auto Loz: (45～400Hz): 600.0V: ±(1.5%+5); 1500V: ±(1.8%+5)

ACV+DCV: 600.00mV/6.000V/60.00V/600.0V/1500V: ≥45Hz, <500Hz: ±(1.5%+5); ≥500Hz, <1KHz: ±(2.5%+5);

Resistance:

600.0Ω: ±(0.8%+5)

6.000kΩ/60.00kΩ/600.0kΩ/

6.000MΩ: ±(0.5%+5)

60.00MΩ: ±(2.5%+5)

Capacitance:

60.00nF: ±3.0%

600.0nF/6.000μF/60.00μF/

600.0μF: ±(3.0%+5)

6.000mF/60.00mF: ±(10.0%+5)

Continuity: 600.0Ω: ±(1.0%+5)

Diode: 3.2V: ±(1.0%+5)

Fequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz: ±(0.02%+5)

Duty cycle: 10Hz~10KHz (10%~90%): ±(2.0%+30)

Temperature: -40℃~1000℃: ±(1.0%+30); -40℉~1832℉: ±(1.0%+60)

External clamp (DCA): UT-CS07(optional): 100A(10mV/A) & 1000A(1mV/A): ±(0.8%+5)

External clamp (ACA): UT-CS07(optional): 45～400Hz: 100A(10mV/A) & 1000A(1mV/A): ±(1.0%+5)

AC Power 100A(10mV/A): Active power: 60.00kW/150.0kW: ±(3.0%+5)

Apparent power: 60.00kVA/150.0kVA: ±(2.0%+5)

Reactive power: 60.00kVAr/150.0kVAr: ±(5.0%+5)

Factor: -1~1: *

AC Power 1000A(1mV/A): Active power: 600.0kW/1500kW: ±(3.0%+5)

Apparent power: 600.0kVA/1500kVA: ±(2.0%+5)

Reactive power: 600.0kVAr/1500kVAr: ±(5.0%+5)

Factor: -1~1: *

DC Power 100A (10mV/A): 60.00kVA/250.0kVA: ±(3.0%+5)

DC Power 1000A (10mV/A): 60.00kVA/2500kVA: ±(3.0%+5)

Display count: 6000

Analog bar: 33 segment

True RMS: √

NCV: √

Auto range: √

REL.: √

PEAK: √

MAX/MIN: √

Data hold: √

High voltage alarm: √

High voltage OL alarm: √

Low battery indication: √

Auto power off: √

Multifunctional protection: √

Bluetooth app: √

Backlight: Auto backlight

Drop protection: 5m

IP rating: IP67

Working temperature: -40~55℃

Overvoltage category: CATⅣ1000V & CATⅢ1500V

General Characteristics

Product dimension: 220*104*67mm

Power supply: AA 1.5V *3
