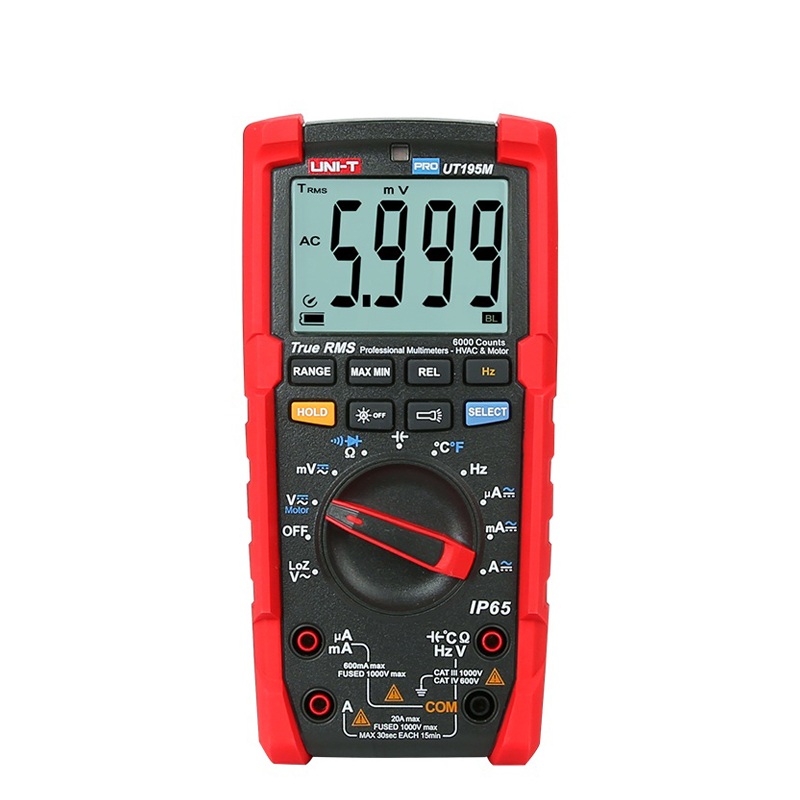

UNI-T UT195M Digital Multimeter (1000V,20A,True RMS, IP 65, 0.5%)

DC voltage: 1000V ±(0.5%+3)

AC voltage: 1000V ±(1.0%+3)

LoZ ACV: 600.0V ±(2.0%+3)

DC current (A): 20A ±(0.8%+3)

AC current (A): 20A ±(1.0%+3)

Resistance (Ω): 60.00MΩ ±(0.8%+2)

Capacitance: 60.00mF ±(3%+5)

Frequency: 60.00Hz ~ 40.00MHz ±(0.1%+4)

Duty ratio: 0.1% ~ 99.9%±

Temperature (°C): -40°C~1000°C ±(1.5%+4)

Temperature (°F): 40°F~1832°F ±(2%+5)

Display count: 6000

Display interface (HTN): Single display

Measurement sampling rate: 3 times/s

True RMS: Yes

AC voltage frequency response: 45 ~ 1kHz

AC current frequency response: 45 ~ 1kHz

3-phase motor sequence test: 600V

Diode/Continuity test: 3V

Auto/Manual range: Yes

Auto power off: Yes

Continuity buzzer: Yes

Low battery indication: Yes

Data hold: Yes

MAX/MIN: Yes

Function selection: Yes

Flashlight: Yes

Auto backlight: Yes

Temperature: -40~1000°C

2m drop test: Yes

Safety rating: IP65

Power supply: 9V battery

LCD size: 66mm×51mm

Device color: Red and grey

Device weight: 437g

Device size: 195mm x 95 mm x 58mm

Standard accessories: Test probes, battery, carrying bag, point contact temperature probe
