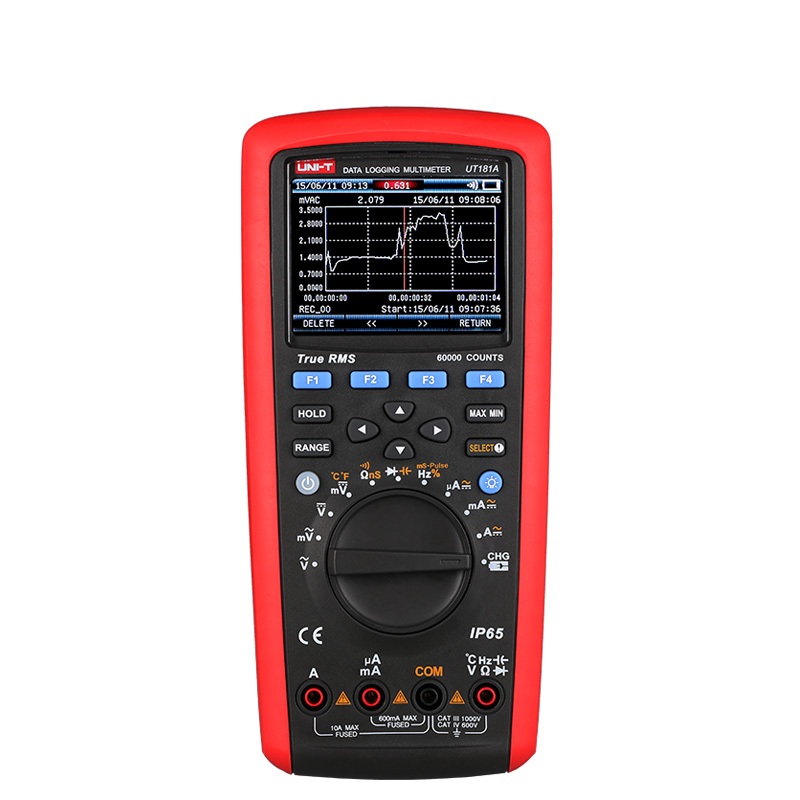

UNI-T UT181A Digital Multimeter (dataloger, ±0.25%, 1000V,10A,True RMS,IP65)

DC voltage: 1000V ±(0.25%+5)

AC voltage: 1000V ±(0.3%+30)

DC current (A): 10A ±(0.08%+10)

AC current (A): 10A ±(0.6%+20)

Resistance (Ω): 60.00MΩ ±(0.05%+2)

Admittance (nS): 60nS ±(2%+10)

Capacitance: 60.00mF ±(2%+5)

Frequency: 10Hz ~ 60MHz ±(0.01%+5)

Temperature (°C): -40°C~1000°C ±(1%+30)

Temperature (°F): -40°F~1832°F±(1.5%+50)

Duty cycle: 10% ~ 90% ±(2%+5)

Display count: 60000

Dual temperature measurement: T1, T2, T1-T2, T2-T1

Data hold/Peak hold: Yes

Relative mode: Yes

Data logging: 20000

Trend capture: Yes

MAX/MIN/AVG: Yes

Data time display/Data comparison: Yes

Backlight adjustment: Yes

Analog bar graph/USB interface: Yes

Mis-plug alarm: Yes

Battery indication/Auto power off: Yes

Rechargeable battery: Yes

Input protection: Yes

Input impedance for DCV: ≥10MΩ

1m drop test: Yes

Safety rating: IP65

Power supply: Li-ion battery: 7.4V 2200mAh

Display: 3.5-inch 64K color TFT LCD (320 x 240)

Device color: Red and grey

Device weight: 638.6g

Device size: 225mm x 103mm x 59mm

Standard accessories: Battery, test leads, temperature adaptor socket,

point contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable
