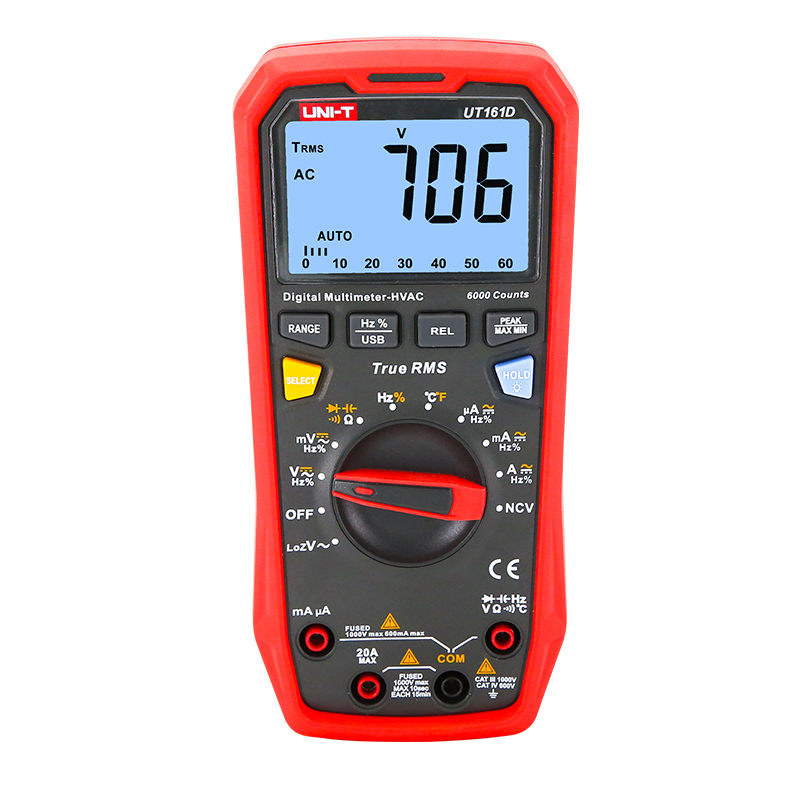

UNI-T UT161D Digital Multimeter (True RMS, DC/AC 20A)

Certifications: CE/RoHS/cETLus

Safety ratings: CAT III 1000V/CAT IV 600V

AC voltage (V): 1000V ±(1%＋3)

DC voltage (V): 1000V ±(0.5%＋3)

AC current (A): 20A ±(1.2%＋5)

DC current (A): 20A ±(1%＋2)

Resistance (Ω): 60MΩ ±(1%＋2)

Capacitance (F): 60mF ±(3%＋5)　

Frequency (Hz): 10MHz ±(0.1%＋4)

Duty cycle (%): 0.1%~99.9% ±(2%＋5)

Temperature (°C/°F): -40°C~1000°C ±(1%＋3), -40°F~1832°F ±(1%＋6)

Display count: 6000

Bandwidth (Hz): 40Hz~1kHz

LoZ ACV: Yes　　

Peak Hold: Yes

Analog bar: 31

Power: 1.5V battery (R03) x 4

Product net weight: 350g

Product size: 190mm x 90mm x 50mm

Standard accessories: Battery, gold plated test leads, USB cable, temperature probe, English manual

Optional accessories: Bluetooth/APP

Manual
