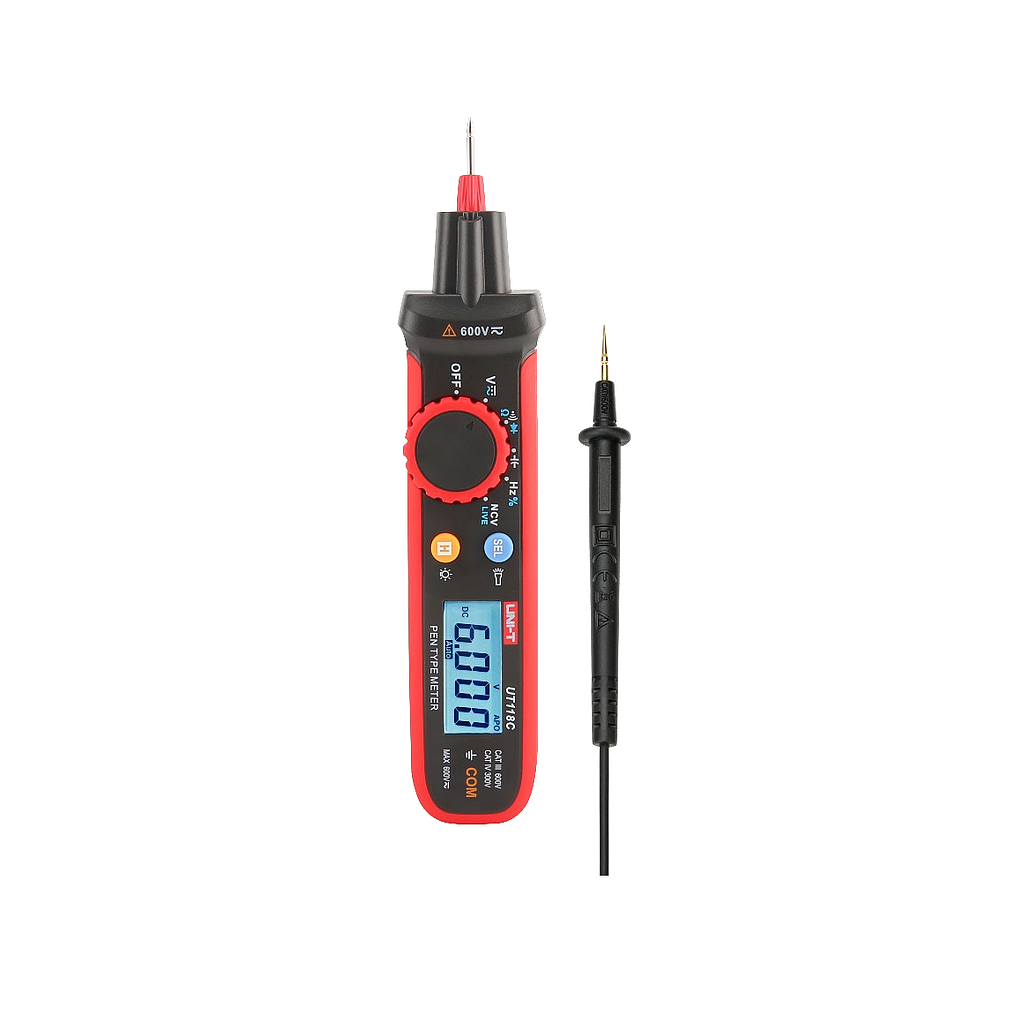

UNI-T UT118C Pen type meter (6.000V~600.0VAC/DC; 600.0nF~60.00mF; 99.99Hz~999.9kHz)

Technical Specifications:

DC voltage (V): 6.000V/60.00V/600.0V; ±（1％＋3）

AC voltage (V): 6.000V/60.00V/600.0V; ±（1％＋4）

Resistance:

600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ; ±(1%+3)

6.000MΩ; ±(1.5%+5)

60.00MΩ; ±(2.5%+5)

Capacitance:

600.0nF/6.000uF/60.00uF/600.0uF, ±（3.5%+8)

6.000mF, ±（5.0%+9)

60.00mF, ±（10.0%+9)

Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz, ±(0.01%+5)

Features

Display count: 6000

Duty cycle: 0.1% to 99.9%

NCV/LIVE test: √

True RMS: √

Diode: √

Continuity: √

Resistance: √

Auto range: √

Screen: HTN LCD 36*15mm

Auto power off: √

Flash light: √

Indicator: Dual color

Battery: AAA*1

Category rating: CAT IV 300V; CAT III 600V

Certificates: CE/cETLus/ROHS

General Characteristics

Power supply: AAA*1

Product dimension: 182.5mm x 38.0mm x 38.5mm

Product color: Gray + Red

Accessories: User manual 1pcs, 1.5V AAA battery 1pcs
