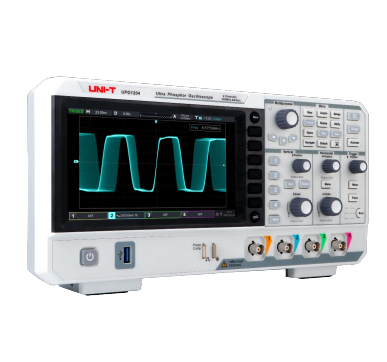

UNI-T UPO1204 Digital Oscilloscopes (200MHz, 2 GSa/s, 4CH)

Bandwidth: 200MHz

Channel: 4

Sampling rate: 2 GSa/s

Waveform capture rate: 150,000 wfm/s, 500,000 wfm/s (Fast Acquire)

Storage depth: 56 Mpts

Vertical Range: 8-bit

Vertical Scale: 1 MΩ: 500μV/div to 20 V/div

Gain accuracy:

<10mV: ±4.0% full scale

≥10mV: ±3.0% full scale

Time base range: 1 ns/div to 1000 s/div

Frequency meter: 7 digit

Bus Analysis: RS232/UART, I2C, SPI

Auto Measurement: 36

Waveform recording: 120,000

FFT points: 1Mpts

Interface: USB Host, USB Device, LAN

Display: 7inch TFT-LCD (800x480)
