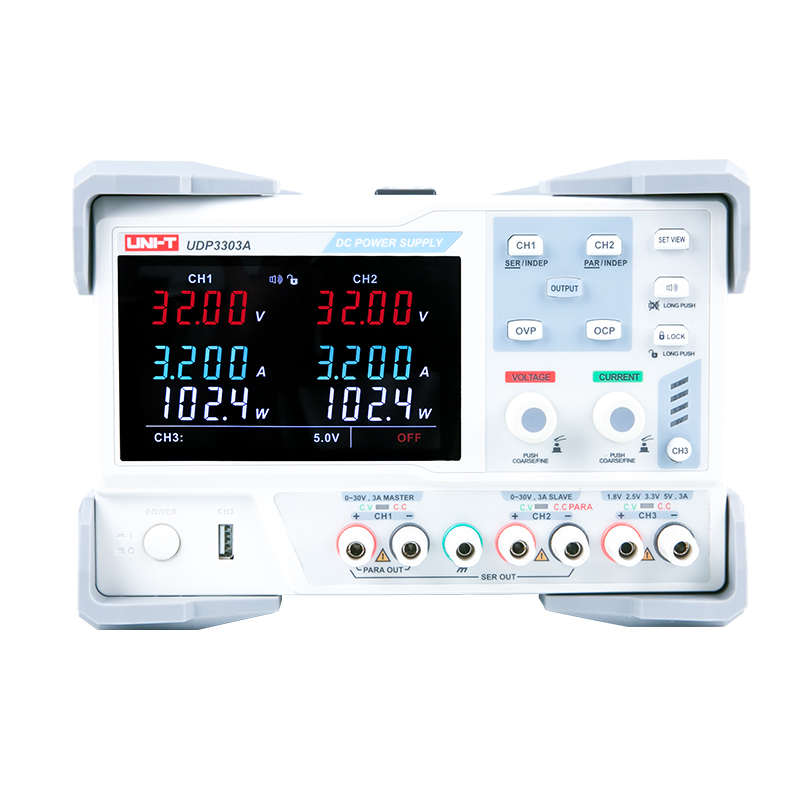

UNI-T UDP3303A Industrial Linear DC Power Supply (3CH,30V,3A,195W)

Output voltage: 0~30V (CH1/CH2)

Output current: 0~3A (CH1/CH2)

Output power: 195W

Accuracy:

+ Voltage: ±(0.1%+30mV)

+ Current: ±(0.3%+5mA)

Display: 4 bit

Interfaces: USB Host (5V/2A, charging port only), digital interface

Programmable: No

Over voltage/current protection: Yes

Over temperature protection: Yes

Ripple (20Hz~20MHz): Voltage: ≤1mVrms; Current: ≤3mArms

Power: Input voltage: AC 100V/120V/220V/230V±10%, 50Hz/60Hz

Product net weight: 8.5kg

Product size: 143mm x 190mm x 327mm

Standard accessories: Power cord, output cables, USB cable (UDP3303C), PC software CD

Datasheet

Manual
