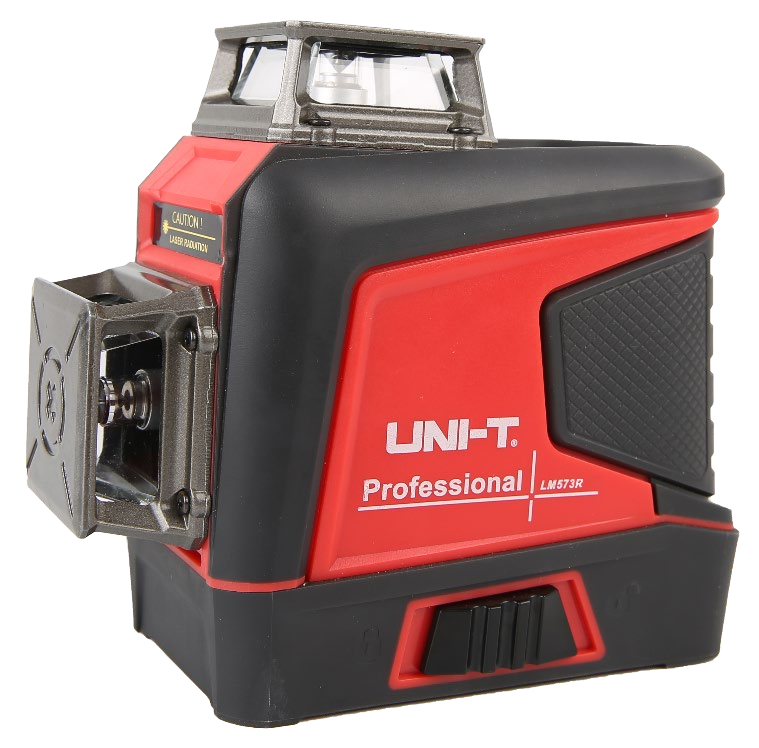

UNI-T LM573R Line laser (±(3±1)°; ≤±3mm/10m, 12 lines)

Laser tube: SHARP LD

Laser type: Red, high brightness

Laser lines: 12 lines

Laser wavelength: 635nm±10nm

Laser class: CLASS II

Horizontal accuracy: ≤±3mm/10m

Vertical accuracy: ≤±3mm/10m

Brightness adjustment: 3 scales adjustable

Laser linewidth: ≤5mm±1/10m (indoor lighting: 80~100lux

Emission angle: 360°

Leveling range: ±(3±1)°

Minimum distance to wall/ground: 10mm

Battery life: >30h

Operating range: In the highest brightness, radius>30m

Leveling modes: Magnetic damping, heavy hammer

Alarm modes: Buzzer + laser line flashes

Diagonal mode: √

Product size: 130 x 87 x 120mm

Operating temperature: -10~50°C

Power supply: 3.7V 6000mAh

Standard accessories: Laser level, 6000mAh battery pack, Type-C cable, user manual, wall-mounted bracket+iron plate (not LM585R), remote control (not LM585R), lifting table (only LM585R), tripod base (only LM585R), toolbox
