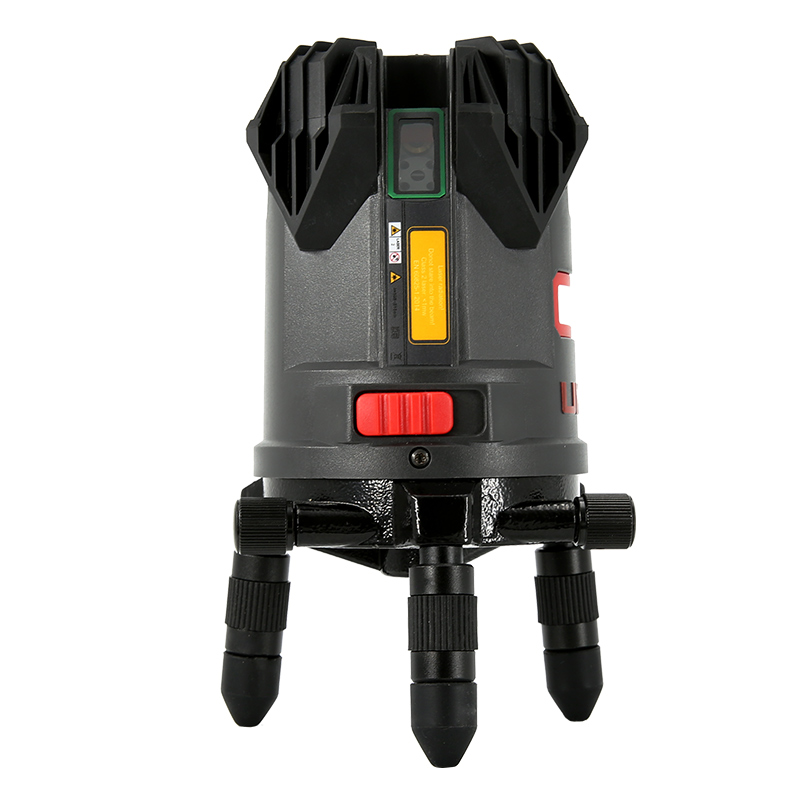

UNI-T LM555LD Laser Leveler (4V1H 1D; ±3.5°; IP54)

Display type: Green LD

Line type: 4V1H 1D

Laser wavelength: 510~515nm

Light source: ≤1mW

Laser class: 2

Expanded Angle: H130°/V110°

H/V accuracy: ±2mm/10m

Self-leveling range: ±3.5°

Self-leveling method: Gravity pendulum magnetic damping

Self-leveling time: <3s

Working distance: Line 20m, point 25m@200lux

Operating time: >5h (all lasers on)

Operating temperature range: -5°C to 40°C

Storage temperature range: -20°C to 60°C

IP rating: IP54

General characteristics

Power: 3.7V Li-ion battery 4000mAh

Product net weight: Around 1kg

Product size: 126mm x 120mm x 204.5mm

Standard accessories: Safety goggles, adapter, USB cable, mark ruler, English manual
