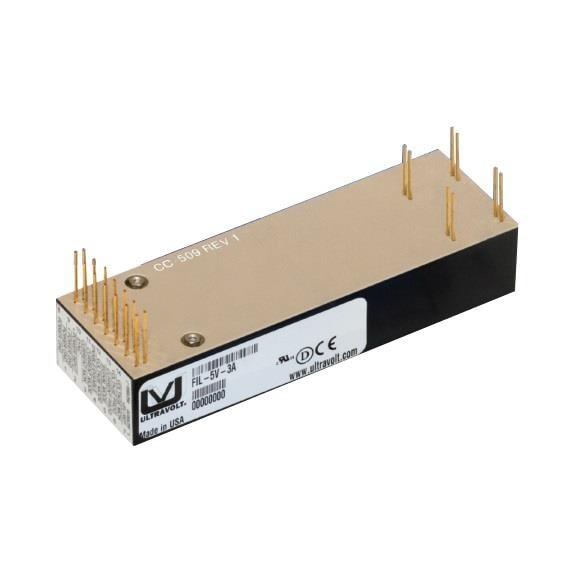

Ultravolt FIL-5V-3A-M Non-Isolated / PoL FIL-Series Filament Brick, Single output (Unipolar), +24V Input, +5V Output, 3W, Thru-hole mount, Regulated, Mu Metal shield

Width: 38 mm (1.496 in)

Height: 23 mm (0.906 in)

Length: 119 mm (4.685 in)

Industry: Industrial

Output Type: Precision Filament Supply

Mounting Style: Chassis Mount

Number of Outputs: 1 Output

Input Voltage - Max: 24 V

Input Voltage - Min: 24 V

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 0 V to 5 V

Maximum Operating Temperature: + 45 C

Minimum Operating Temperature: + 10 C
