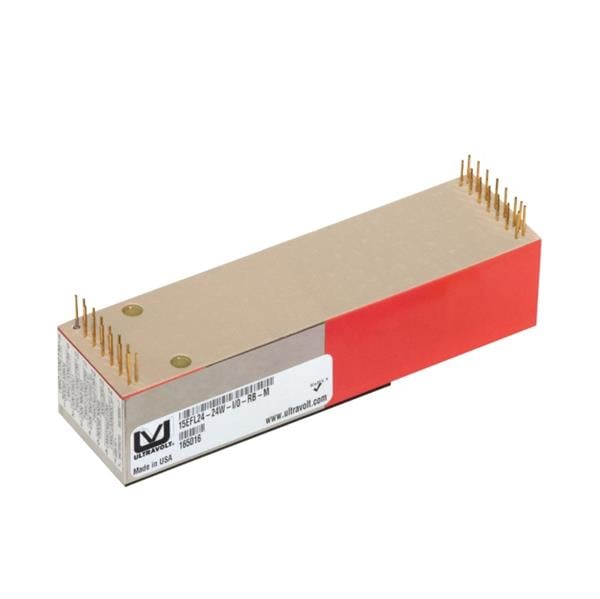

Ultravolt 15FL24-24W-M-E Isolated FL-Series Floating-Hot-Deck power supply, Triple output, 15kV HV isolation, +24Vdc input, +24Vdc primary output, -15/+5.6Vdc secondary outputs, 24W, Thru-hole/Chassis mount, Regulated, Mu Metal, Eared mounting flange

Industry: Industrial

Output Power: 24 W

Input Voltage: 22.8 V to 25.2 V

Mounting Style: Chassis

Isolation Voltage: 15 kV

Number of Outputs: 3 Output

Input Voltage - Max: 25.2 V

Input Voltage - Min: 22.8 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 1 A

Output Current-Channel 2: 10 mA

Output Current-Channel 3: 10 mA

Output Voltage-Channel 1: 24 V

Output Voltage-Channel 2: - 15 V

Output Voltage-Channel 3: 5.6 V

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 20 C
