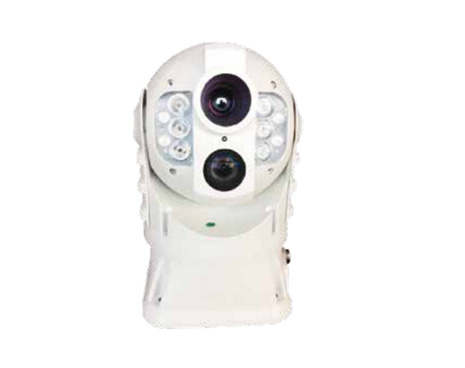

Ulirvision TI400PTZ Online Monitoring Thermal Imaging Pan&Tilt (384×288)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5~14μm

NETD/Sensitivity: 65mK

Lens Data:

FOV: 24°×18°

Minimum imaging distance: 30cm

IFOV: 1.3mrad

Focus: Auto/Manual

Lens(optional): 6.5mm、 15mm、 25mm motorized lens

Measurement:

Temperature range: -20℃~+250℃（Scalable to 650℃）

Measurement accuracy: ±2℃/±2%(Reading range), take the maximum

Temperature measurement mode: Point temperature measurement, area temperature measurement, highest value

Measurement: correction Auto/Manual

CCD Video Camera:

Resolution: 1920×1080

Signal system: PAL/NTSC

Sensor type: 1/2.8‘’ Progressive Scan Cmos

Zoom: 20X optics, 12X digital

Minimum illumination: 0.05Lux

SNR: 50dB

Electronic image stabilization: ON/Off

Focal distance: F4.7-94mm

Pan & Tilt:

Horizontal range: 0°~360°

Horizontal speed: 0.04°~80°/s

Vertical range: -20°~90°

Vertical speed: 0.05°~60°/s

Presetting amount: 255

Repositioning accuracy: ±0.05°

Power System:

Working voltage DC： +12V

Power consumption: <50W

Environment Parameters:

Operating temperature range: -25℃～+50℃

Storage temperature range: -40℃～+70℃

Encapsulation: IP66

Vibration protection: Horizontal 9G, vertical15G

Wind protection: 180km/h

Physical data:

Size: φ 199mm×300mm

Weight: 7kg

Packing Standard: Thermal Imaging Pan&Tilt, operating instructions, warranty card, packing box
