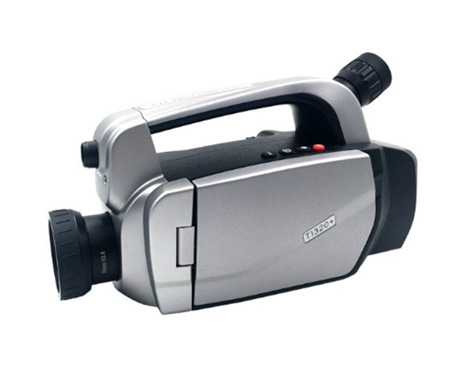

Ulirvision TI320+ Gas Thermal Imaging Camera (320×256, 20℃～+500℃gas detection)

Detector Data:

Type: Cooled QWIP

IR resolution: 320×256

Pixel pitch: 30μm

Spectral range: 9.8～11.2μm

NETD/Sensitivity: 25mK

SF6 gas sensitivity: ≤0.001ml/s

Lens:

FOV/Focal distance: 10°×7.5°/55mm

Minimum Imaging distance: 2m

IFOV: 0.55mrad

Focus: Manual

Image Performance:

Display: 5”,color LCD, 800×480 pixels

Built-in visible light camera: 5 megapixel CMOS, autofocus, 1 LED fill light

Frequency: 50Hz/60Hz

Digital zoom: 1X～8X continuous

Color palettes: 12 palettes (including iron, rainbow, white hot and black hot etc.)

Contrast/brightness: Auto/Manual

Measurement:

Temperature range: -20℃～+500℃

Temperature accuracy: ±2℃/±2%(reading)

Spotmete: 10 adjustable spots

Image Storage:

Storage card: 8G SD card(can be extended to 32G)

Video export: Card reader, USB, WiFi

Laser Point:

Grade/Type: Class 2,1mW/635nmRed

Interfaces:

Power :Yes

SD card slot: Yes

Video output: HDMI

Audio output: Yes

Tripod: 1/4” -20

Power System:

Battery type: Rechargeable li-ion battery

Battery operation time: 2h

DC supply DC: 12V

Charging system: In camera, AC adapter, car charger

Power saving: Yes

Environment Parameters:

Operation temperature range: -15℃~+40℃

Storage temperature range: -20℃~+50℃

Humidity: ≤95%(Non-condense)

EMC: EN61000-6-4&EN61000-6-2、FCC47CFR Part15 class A、EN61000-4-8, L5

Vibration: 2G(IEC60068-2-6)

Shock: 25G(IEC60068-2-29)

Encapsulation: IP54(IEC60529)

Physical Data:

Size (L×W×H): 308mm×142mm×166mm

Weight: ≤2.5kg(with standard lens)

Gas Detection: Sulfur Hexafluoride(SF6), Ammonia(NH3), Cyanoacrylate, chlorine dioxide, acetic acid, freon-12, Ethylene, methyl ethyl ketone(MEK), etc.

Packing:

Standard: Thermal imaging camera with standard 10°standard len, USB WiFi module, 2 Li-ion batteries, battery charger, adapter, car, charger, SD card, SD card, reader, software CD, warranty card, certificate, calibration book

Optional accessories: Laptop, SLR camera
