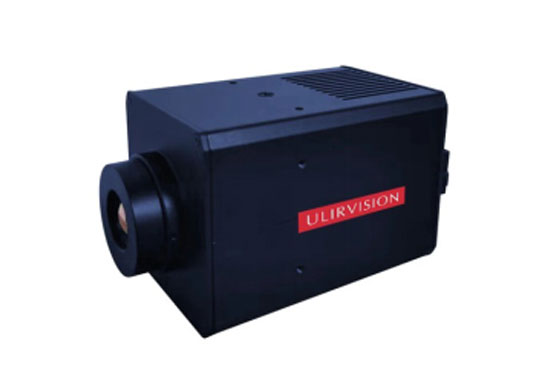

Ulirvision TI160-P4 Thermal Imaging Camera (384×288, 30~45℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 384×288

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 80mK

Lens Data:

FOV: 24°× 18°

Minimum imaging distance: 30cm

IFOV: 1.13mrad

Focus: Auto/Motor

Lens(optional): 15mm lens

Image Performance:

Image enhancement: IVE image enhancement algorithm

Frequency: 25Hz

Digital zoom: 2X、4X

Color palettes: 10 options (including iron red, rainbow, black hot and white hot, etc.)

Measurement:

Temperature range: +30℃～+45℃

Measurement accuracy: ±0.5℃ or ±0.3℃(with blackbody)

Measurement correction: Auto

Power System:

Working voltage DC: 12V

Power consumption: <6w

Environment Parameters:

Operating temperature range: -20℃～+50℃ (ambient temperature 10℃-32℃ accurate measurement)

Storage temperature range: -40℃～+70℃

Humidity: ≤95%(non-condensing)

Vibration: 2G(IEC60068-2-6)

Shock: 25G(IEC60068-2-29)

Physical data:

Size: 136mm(L)×65mm(W)×67mm(H)

Weight: ≤500g

Mounting: UNC1/4-20 standard tripod interface, M3 thread interface

Packing Standard: Thermal imaging camera, integrated cable, warranty card, certificate, case
