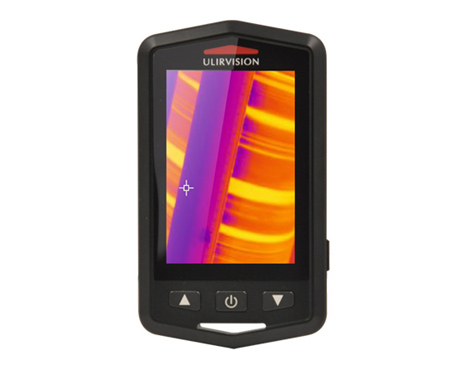

Ulirvision T2 Pocket Thermal Camera (80×60, -20~150℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 80×60

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: <50mK

Lens Data:

FOV: 50°× 37.5°

Image performance:

Display: 3.5” 480×320

Frequency: 9Hz

Focus mode: Fixed

Color palettes: Iron、rainbow and white hot

Measurement:

Temperature range: -20℃～+150℃

Measurement accuracy: ±2℃/±2%

Emission correction: Adjustable from 0 to 0.95, or selected from list of materials

D:S: 15:1

Measurement modes: Spot(center) mode, capture max./min./avg.temperature automatically

Image storage:

Storage capacity: 800

Storage format: JPG

Interface:

Power interface: Yes

Data transmission: USB3.0 Type-C

Power System:

Battery type: Rechargeable Li-ion battery

Operating time: >4h

Charging type: USB

External power DC: 5V

Environmental Parameters:

Operating temperature range: 0℃～+45℃

Storage temperature range: -20℃～+55℃

Encapsulation: IP54

Physical Data:

Size: 125mm×72mm×16mm

Weight: 173g

Others:

Sensor: Direction sensor

Standard packing: Pocket thermal camera, power adapter, USB Type-C cable, user manual, warranty card, certification

Datasheet
