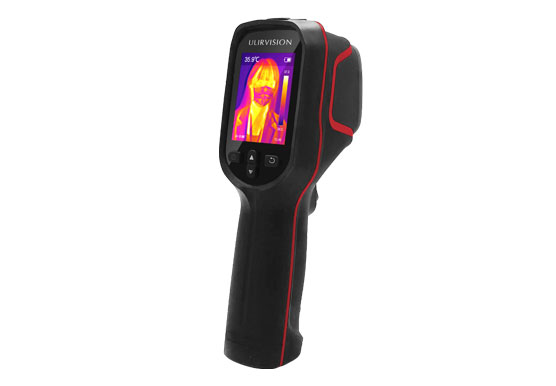

Ulirvision T10P Handheld Fever Screening Thermal Camera (160×120, 30~45℃)

Detector Data:

Type: Uncooled FPA

IR resolution: 160×120

Pixel pitch: 17μm

Spectral range: 7.5～14μm

NETD/Sensitivity: 50mK

Lens Data:

FOV: 42°× 32°

Minimum imaging distance: 30cm

IFOV: 4.42mrad

Focus: No need to focus

Image Performance:

Display: 2.4”LCD display,320×240

Visible light camera: 3 megapixel CMOS, auto focus, 1 led fill light

Display mode: Infrared, visible light, fusion

Palette: iron red, rainbow, black hot and white hot

Measure:

Temperature range: +30℃～+45℃

Measurement accuracy: ±0.5℃

Measurement mode: Spot measure(Center spot, highest temp, lowest temp)

System functions:

USB interface: USB2.0, Image, measurement data transmission

WIFI: Yes, equipped with dedicated APP

Function settings: Date / time, temp unit ℃/℉/K, language

Storage: 8G memory, support expansion

Laser indicator: Class 2, 1mW, 635nm red

Tripod: 1/4” -20

Battery type: Lithium battery, rechargeable

Operating time: 8h continuous working (room temperature)

Charging type: Micro USB direct charge

Charging time: 4h(room temperature)

Environment Parameters:

Operating temperature range: +16℃～+32℃

Storage temperature range: -40℃～+70℃

Humidity: ≤95%(non-condensing)

Drop protection: 2m

Encapsulation: IP54(IEC60529)

Physical data:

Size: 190mm×72mm×60mm

Weight: ≤320g(with battery)

Standard: Thermal Imaging Camera, adapter, USB cable, warranty card, certificate, calibration

book
