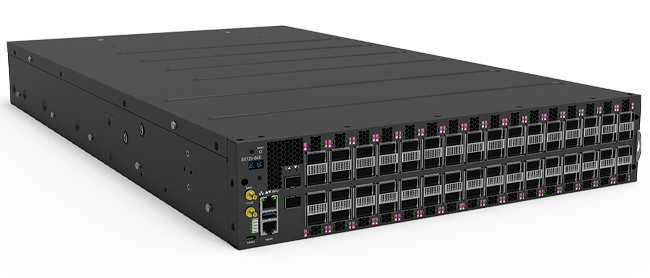

Ufispace S9725-64E High Density 800G Disaggregated Core and Edge Router (800G)

Physical

Processor: Intel® Icelake-D 4-Core @ 1.9GHz

Memory: 32GB DDR4

Storage: 2x256GB SSD

ASIC: Broadcom Ramon3 BCM88920

BMC: AST2620

Chassis: 2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45")

Weight without FRU: 23.69kg (52.22 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 200 to 240V, 16A

DC input: -40 to -72V, 80A

Typical power: 738 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
