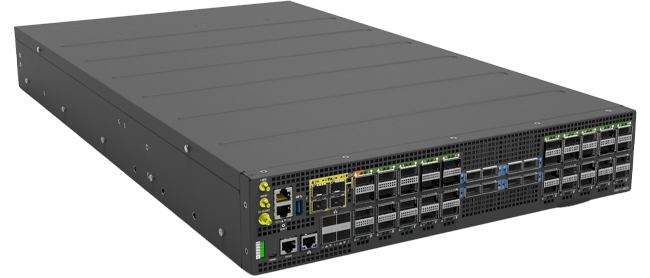

Ufispace S9610-48DX Open Aggregation Router (48-Port, 100/400G)

Physical

Processor: Intel Icelake-D 8-Core @ 2.1GHz (Standard)

Intel Icelake-D 12-Core @ 1.8GHz (Premium)

Memory: 64GB DDR4

Storage: Standard : 1x128GB SSD

Premium : 2x256GB SSD

ASIC: Broadcom Qumran2c+ BCM88840

Broadcom OP2 BCM16K (Optional)

BMC: AST2620

Chassis: 2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45")

Weight without FRU: 22.64kg (49.91 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.:

AC input: 200 to 240V, 12.5A

DC input: -40 to -72V, 60A

Typical power: 548W

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
