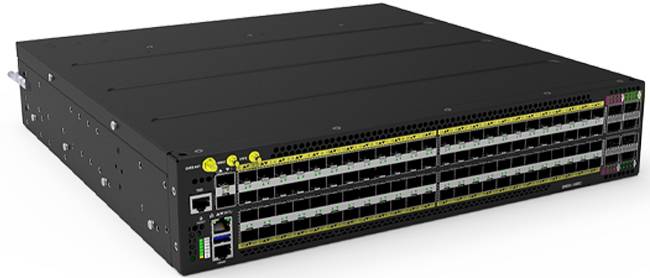

Ufispace S9601-104BC Open Aggregation Router (104-Port, 25/100/200G)

Physical

Processor: Intel Denverton 8-Core @ 1.7GHz

Memory: 32GB DDR4

Storage: 128GB SSD

ASIC:

Broadcom Qumran2c BCM88820

Broadcom OP2 BCM16K

BMC: AST2620

Chassis: 2RU, 440W x 440D x 87.7H mm (17.32" x 17.32" x 3.45")

Weight without FRU: 14.73kg (32.4 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 100 to 240V, 12A

DC input: -48 to 60V, 37A

Typical power: 282.2 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 50°C (32°F to 122°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing
