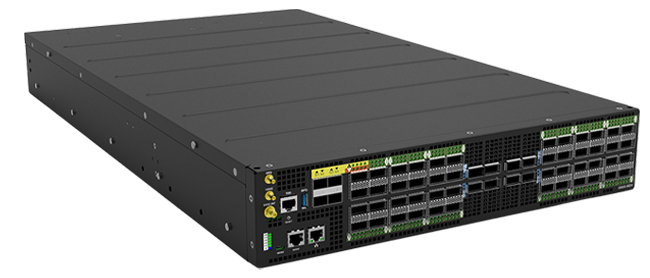

Ufispace S9600-56DX Open Aggregation Router (56-Port, 100/400G)

Physical

Processor: Intel Icelake-D 8-Core @ 2.1GHz

Memory: 32GB DDR4

Storage: 128GB SSD

ASIC: Broadcom Qumran2c BCM88820

BMC: AST2620

Chassis: 2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45")

Weight without FRU: 19.26 kg (42.46 lbs)

Redundancy: 1+1 Hot swappable power units

3+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 200 to 240V, 12.5A

DC input: -40 to -72V, 60A

Typical power: 481 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
