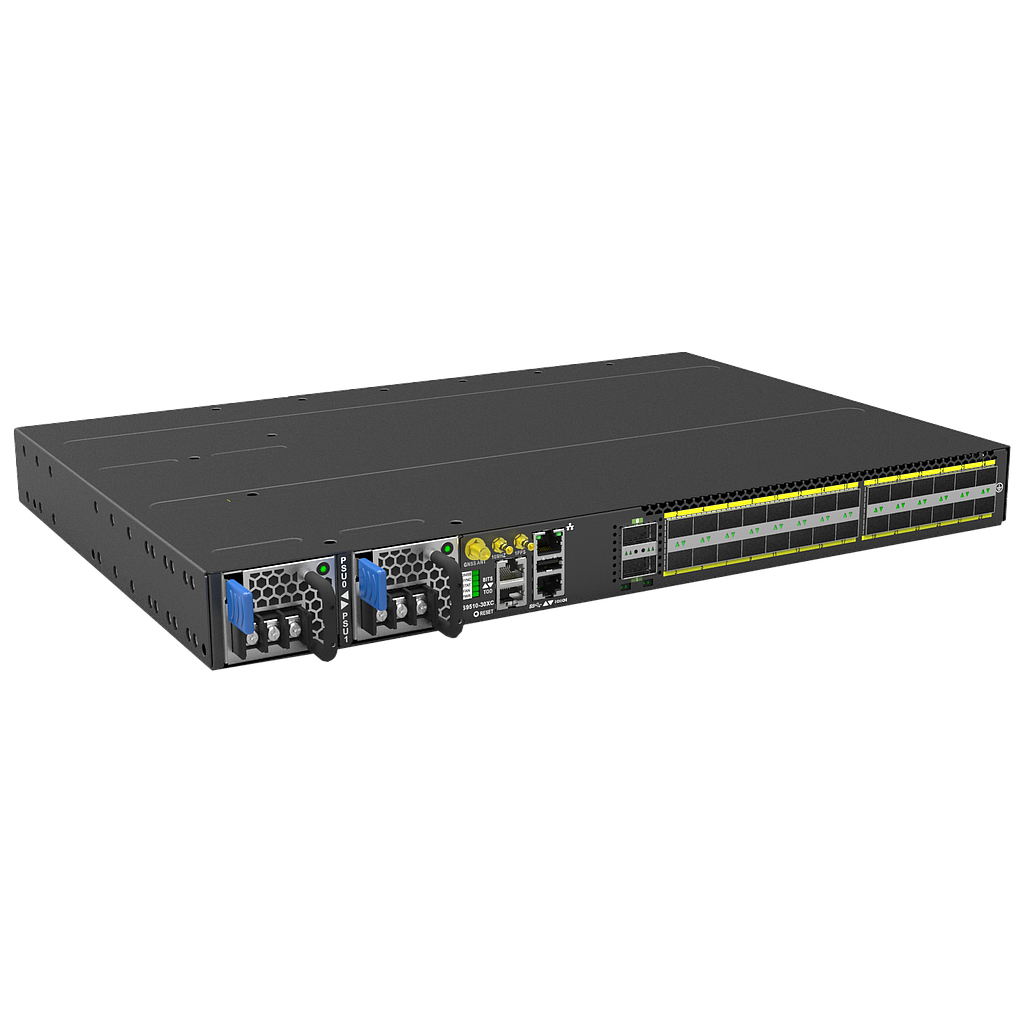

Ufispace S9510-30XC Disaggregated Cell Site Gateway Router (30-Port 25/100G)

Physical

Processor: Intel Denverton-NS 4-Core @ 1.6GHz

Memory: 8GB DDR4

Storage: 32GB SSD

ASIC: Broadcom Qumran2u BCM88284

BMC: AST2620

Chassis: 1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.713")

Weight without FRU: 4.5 kg (9.92 lbs)

Redundancy: 1+1 Hot swappable power units

4+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 100 to 240V, 6A

DC input: -36 to -75V, 16A

Typical power: 126.1 Watts (no transceiver)

Operating Specs.: Operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: –40°C to 70°C (–40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
