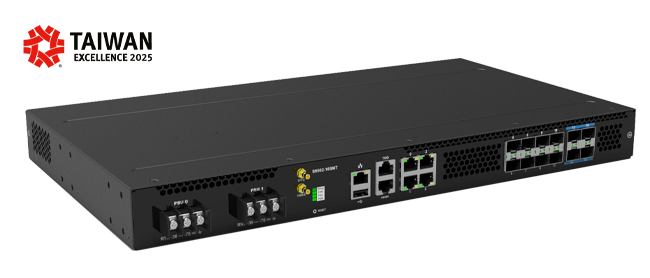

Ufispace S9502-16SMT Disaggregated Cell Site Gateway Router (16-Port, 100M/1/10G)

Physical

Processor: Intel Denverton-NS Dual-Core @ 1.6GHz

Memory: 8GB DDR4

Storage: 32GB SSD

ASIC: Broadcom Qumran-UX BCM88273

Chassis: 1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.71")

Weight: 4.32 kg (9.52 lbs)

Redundancy: 1+1 Fixed power units

Environmental

Power Specs.: AC input: 100 to 240V, 2A

DC input: -36V to -75V, 4.5A

Typical power: 45.1 Watts (no transceiver)

Operating Specs.: Operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing
