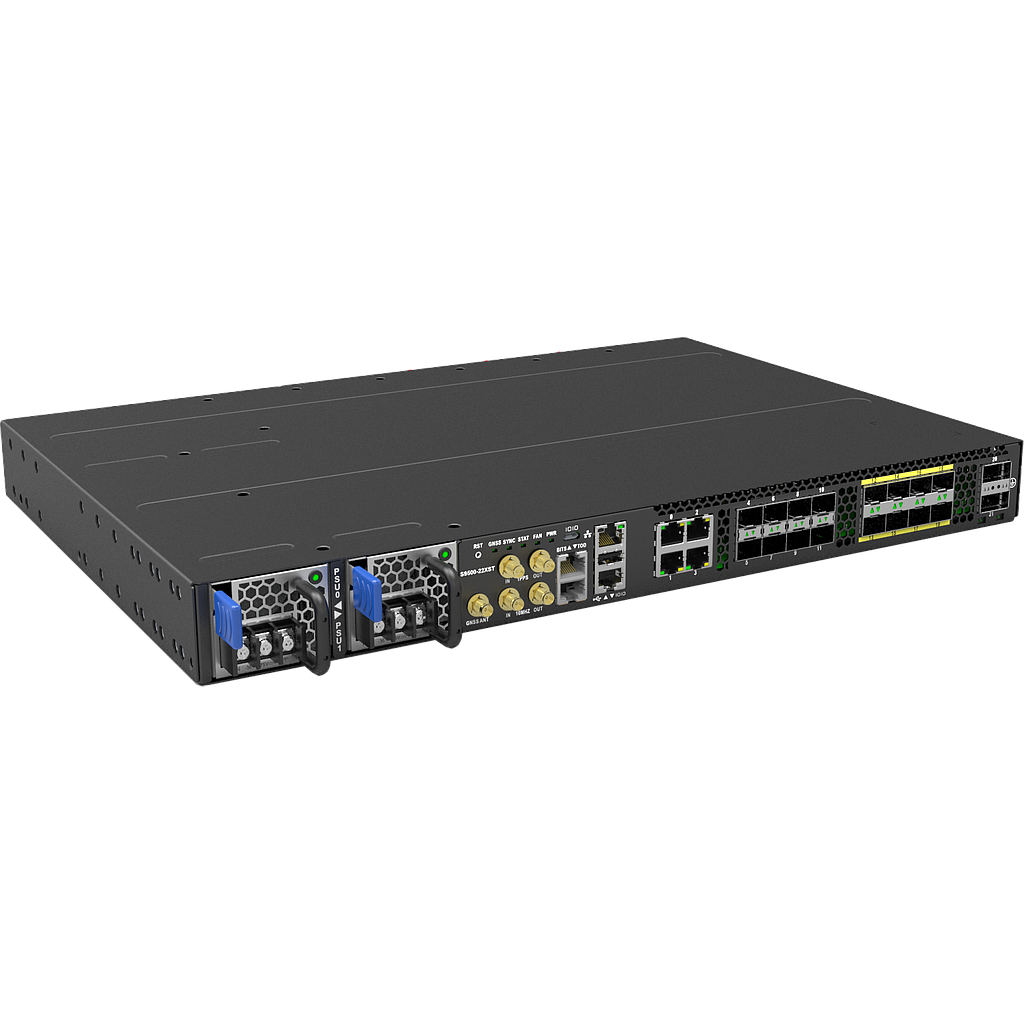

Ufispace S9500-22XST Disaggregated Cell Site Gateway Router (22-Port, 1/10/25/100G)

Physical

Processor: Intel Broadwell-DE 4-Core @ 1.5GHz

Memory: 8GB DDR4 (Up to 32GB)

Storage: 32GB SSD (Up to 128GB)

ASIC: Broadcom Qumran-AX BCM88470

BMC: AST2400

Chassis: 1RU, 440W x 302D x 43.5H mm (17.32" x 11.89" x 1.713")

Weight without FRU: 4.75 kg (10.47 lbs)

Redundancy: 1+1 Hot swappable power units

2+1 Hot swappable fan units

Environmental

Power Specs.: AC input: 100 to 240V, 3A

DC input: -36 to -75V, 8A

Typical power: 118 Watts (no transceiver)

Operating Specs.: Operating temperature: -40°C to 65°C (-40°F to 149°F)

Operating humidity: 5% to 85% (RH), non-condensing

Non-Operating Specs. : Storage temperature: –40°C to 70°C (–40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
