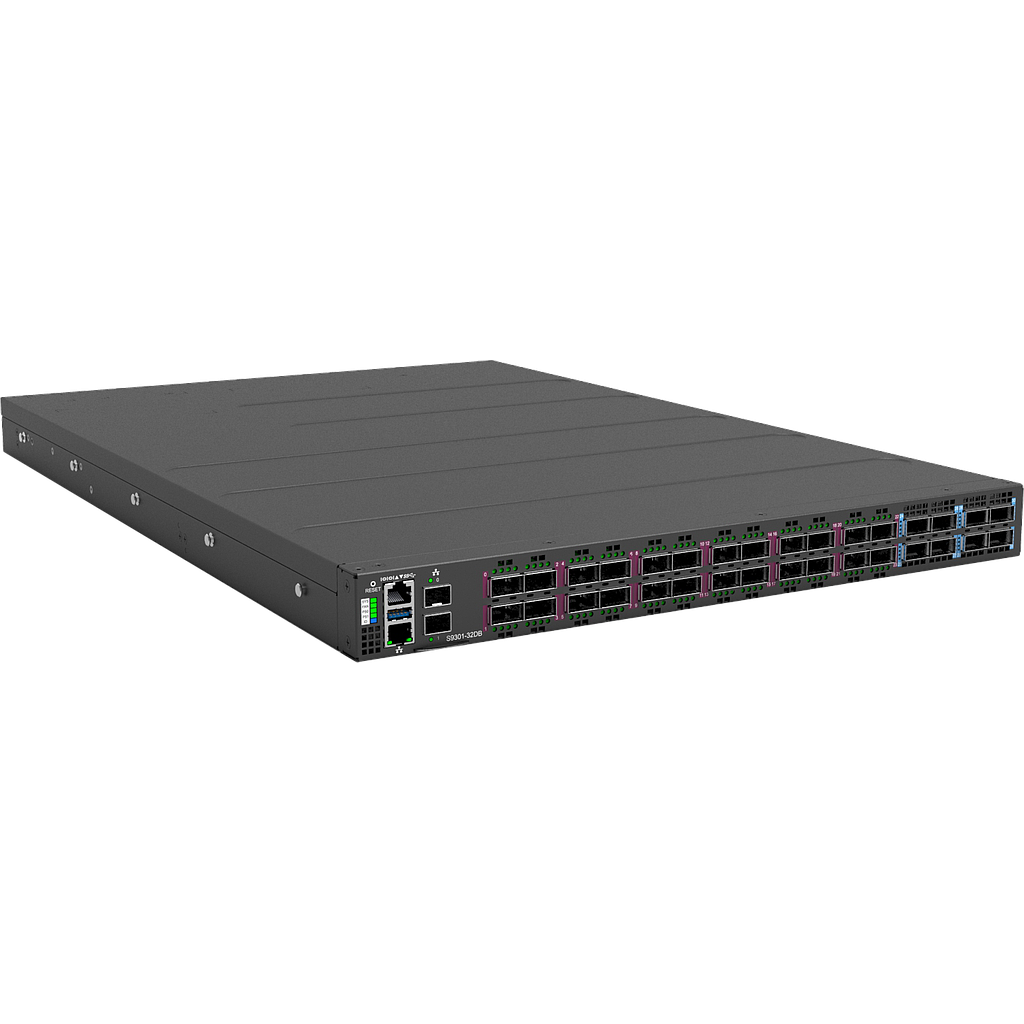

Ufispace S9301-32DB Data Center Spine Switch (24 x 200G QSFP56 & 8 x 400GE QSFP-DD ports)

Physical

Processor: Intel Skylake-D 8-Core @ 1.9GHz

Memory: 32GB DDR4

Storage: 128GB SSD

ASIC : Broadcom Trident4-X9 BCM56780

Chassis: 1RU, 436W x 645D x 43.8Hmm (17.17" x 25.4" x 1.73")

Weight without FRU: 11.2 kg or 24.67 lbs

Redundancy: 1+1 hot swappable power units

5+1 hot swappable fan units

Environmental

Power Specs.: AC input: 100 to 240V, 12A

DC input: -40 to -75V, 40A

Typical power: 291.6 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 40°C (32°F to 104°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 95% (RH), non-condensing
