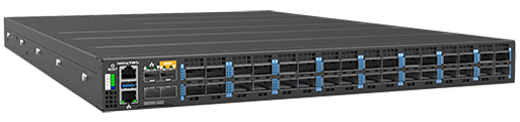

Ufispace S9300-32D Data Center Spine Switch (32 x 400GE QSFP-DD Ports)

Physical

Processor: Intel Skylake-D 8 Cores @1.9GHz

Memory: 32GB DDR4

Storage: 128GB SSD

ASIC : Broadcom Trident4 BCM56880

Chassis: 1RU, 436W x 645D x 43.8H mm , 17.17" x 25.4" x 1.73"

Weight without FRU: 11.34 kg (25 lbs)

Redundancy: 1+1 hot swappable power units

5+1 hot swappable fan units

Environmental

Power supply: AC input: 200 to 240V, 7.5A

DC input: -40 to -75V, 40A

Typical power: 403W (no transceiver)

Operating Spec.: Operating temperature: 0°C to 40°C (32°F to 104°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Spec. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 95% (RH), non-condensing
