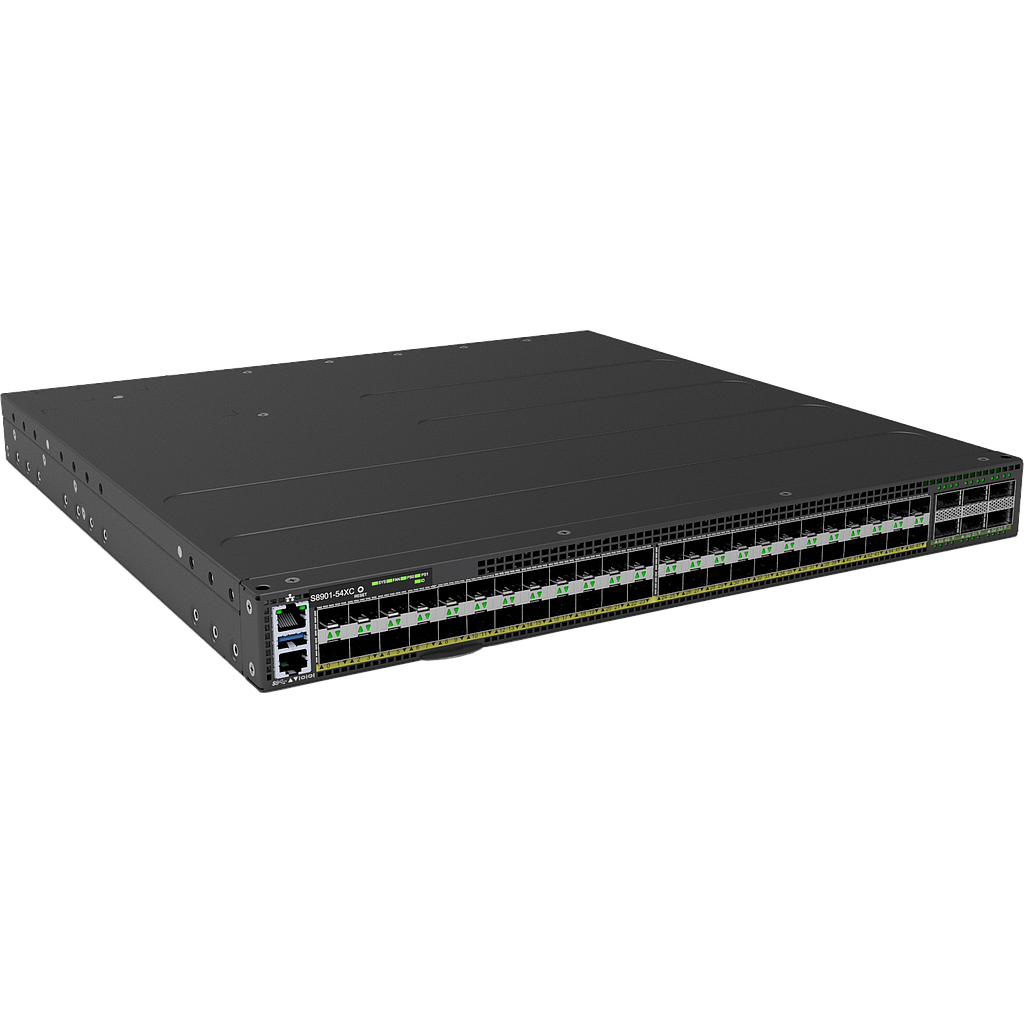

Ufispace S8901-54XC Data Center Switch (48 x 25G SFP28 & 6 x 100G QSFP28 Ports)

Physical

Processor: Intel Denverton 4 Core @ 1.6GHz

Memory: 8GB DDR4 (Up to 32GB)

Storage: 32GB SSD

ASIC : Broadcom Trident3-X5 BCM56770

BMC: AST2620

Chassis: 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72")

Weight without FRU: 8.7 kg (19.18 lbs)

Redundancy: 1+1 hot swappable power units

4+1 hot swappable fan units

Environmental

Power Specs.:

AC input: 100 to 240V, 6A

DC input: -36 to -75V, 16A

Typical power: 120 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 95% (RH), non-condensing
