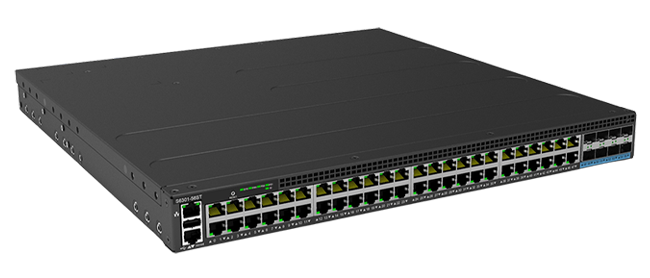

Ufispace S6301-56ST Management Switch (48 x 1G RJ45 & 8 x 10G SFP+ Ports)

Physical

Processor: Intel Denverton 2 Core @ 1.6GHz (standard)

Intel Denverton 4 Core @ 1.6GHz (premium)

Memory: Standard : 8GB DDR4

Premium : 8GB DDR4 (Up to 16GB)

Storage: 32GB SSD

ASIC : Broadcom Trident3-X2 BCM56277

Chassis: 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72")

Weight without FRU: 5.62 kg (12.39 lbs)

Redundancy: 1+1 hot swappable power units

1+1 hot swappable fan units

Environmental

Power Specs.: AC input: 100 to 240V, 3A

DC input: -36 to -72V, 6A

Typical power: 64 Watts (no transceiver)

Operating Specs.: Operating temperature: 0°C to 45°C (32°F to 113°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 95% (RH), non-condensing
