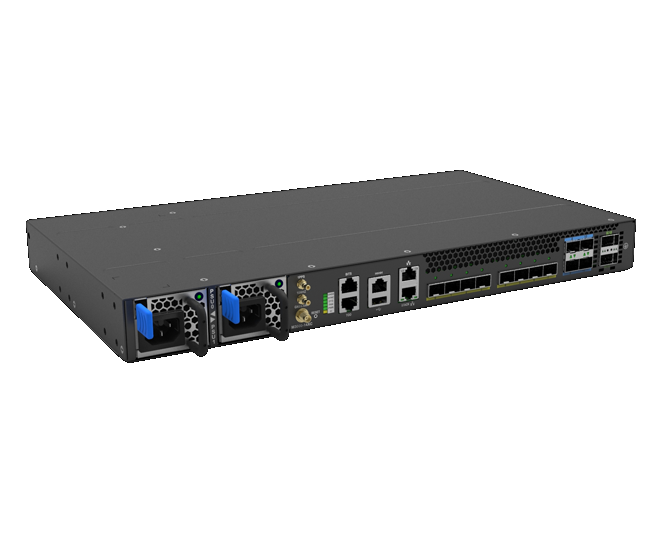

Ufispace M3000-14XC Fronthaul Multiplexer (14-Port, 25/100G)

Physical

Processor: ARM Cortex-A53 4-Core 64-bit @ 1.0GHz

FPGA: Intel S10-TX

Memory: 4GB DDR4

Timing Interfaces: 1 x GNSS input SMA (Premium version)

1 x 1PPS input/output SMB

1 x 10MHz input/output SMB

1 x BITS input/output RJ48

1 x ToD input/output RJ45

Chassis: 1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.713")

Weight without FRU: 4.18 kg (9.21 lbs)

Redundancy: 1+1 Hot swappable power units

Environmental

Power Specs.:

AC input: 100 to 240V, 3A

DC input: -36 to -75V, 8A

Typical power:103W Watts (no transceivers)

Operating Specs.: Operating temperature: -40°C to 70°C (-40°F to 158°F)

Operating humidity: 5% to 95% (RH), non-condensing

Non-Operating Specs. : Storage temperature: -40°C to 70°C (-40°F to 158°F)

Storage humidity: 5% to 93% (RH), non-condensing

Datasheet
