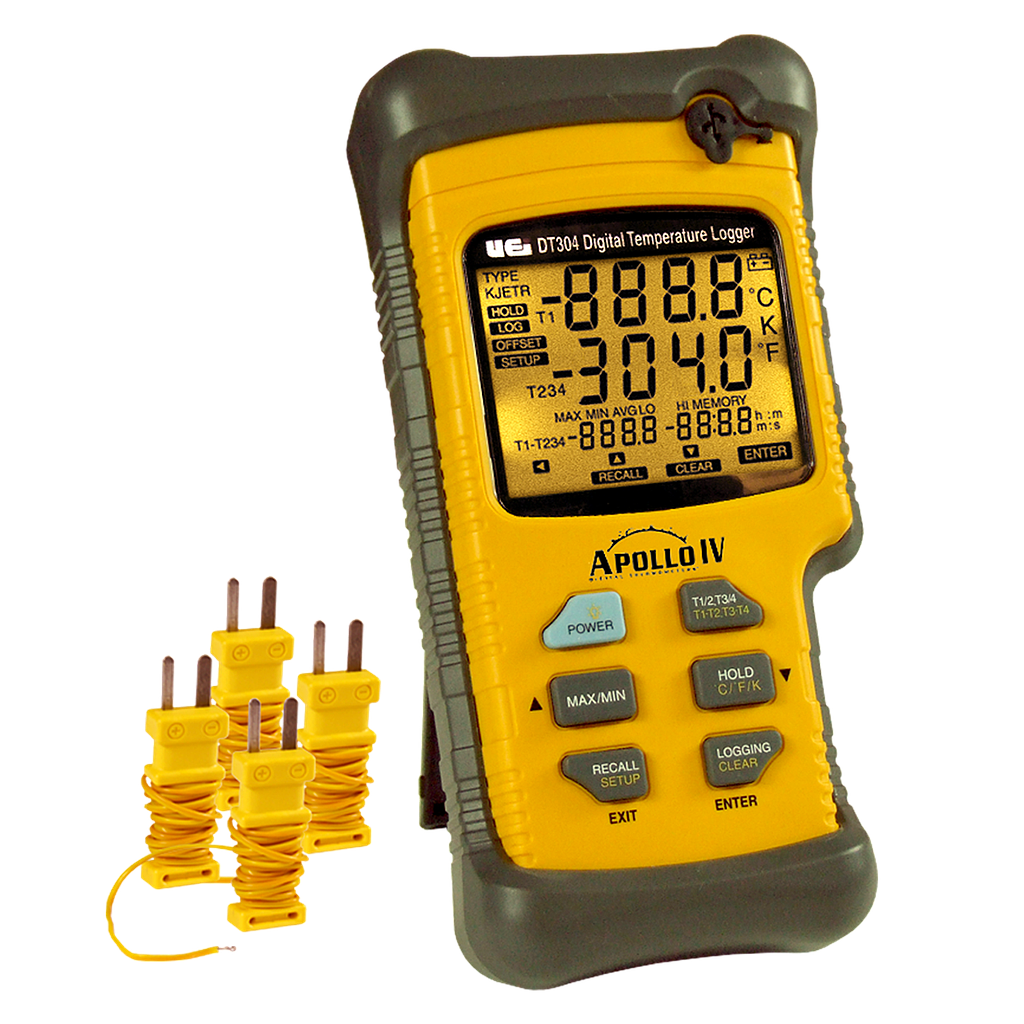

UEi DT304 Quad Input Logging Thermometer (1370°C)

Measurement Range:

J-Type: -346° to +2192°F (-210° to +1200°C)

K-Type: -328° to +2498°F (-200° to +1370°C)

T-Type: -418° to +752°F (-250° to +400°C)

E-Type: -238° to +1832°F (-150° to +1000°C)

Display Resolution:

0.1°F/°C < 1000°

1.0°F/°C ≥ 1000°

Accuracy:J, K, T, and E-Type; ±[0.1% +1.0°F (0.5°C)[Below -148°F (-100°C): add 0.2% of reading for J, K, and E-Type; and 0.1% ofreading for T-Type]

Temperature Coefficient: 0.01% of reading 0.1°F per°F(+0.05°C per°C) for <+64°F (+18°C) or +82°F (+28°C) [Below -148°F (-100°C): add 0.05% of reading for J, K, and E-type; and 0.1%of reading for T-type]

Real Time Clock Tolerance: About 1 second per day

Maximum Differential Common Mode Voltage: 1V (maximum voltage difference between any pair of inputs)

Temperature Scale: ITS-90 (International Temperature Scale of 1990)

Applicable Standards: N.I.S.T. Monograph 175 revised to ITS-90

Dimension: 7.20” (H) x 3.70” (W) x 1.70” (D)

Weight: Approx. 16.2 oz

Battery: 2 x LR03 (AAA) type 1.5V

Certification: CE

Safety:

IEC 1010-1 (2001), UL 3111-1 (6, 1994),

EN 61010-1 (2001), CSA C22.2

No. 1010.1 (1992)

CAT I:

Over Voltage (Installation) CATEGORY I,

Pollution Degree 2 per IEC 1010-1

Compliance:

IEC 60529: IP67 (Ingress Protection rating)

Water Immersion (3’ up to 30 min)

No ingress of dust (20mBar up to 8 hrs.)
